6115G-8S Series of Miniature GPS Synchronised IRIG B Time Code Generator

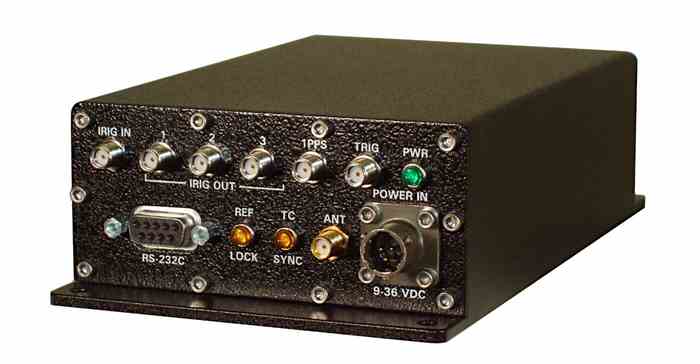

Time Code Generator model 6115G-8SA
Introduction:
The Model 6115G-8 GPS Synchronised Miniature Time Code Generator provides an IRIG B time code output derived from GPS. The time code output is synchronised with UTC time unless a time offset has been programmed. A twelve channel GPS receiver automatically acquires all in-view satellites upon power up and locks an internal IRIG B time code generator to the GPS time reference. If the GPS lock is lost the 6115G-8 will automatically switch to an internal clock and continue generating the output IRIG B signal.
All controls, connectors and indicators are on the front panel.
General Features
-
Twelve Channel GPS Receiver.
-
IRIG B time reference input.
-
UTC time mark output.
-
RS-232C serial port.
-
Event trigger input.
-
Batter backed up internal clock maintains time during power loss.
-
Includes a built in webserver for remote setup and monitor status remote setup.
-
Outputs Time, Latitude & Longitude via serial port (NMEA output format optional).
-
Time offset input via serial port.
-
Non-Volatile Memory.
Variants
Available in the following variants; Mil Qualified (6115G-8S), Mil Qualified TCG w/NEMA GGA output (6115G-8S-N), Mil Qualified IRIG B TCG (6115G-8SA), and Mil Qualified TCG w/NEMA GGA (6115G-8SA-N).
| Model | Feature | |||
|---|---|---|---|---|
| IRIG B122 Output | IRIG B002 Output | NMEA 0183 GGA sentences via serial port. |
NMEA 0183 GSA sentences via serial port. |
|
| 6115G-8S | ✔ | ✔ | ✘ | ✘ |
| 6115G-8S-N | ✔ | ✔ | ✔ | ✔ |
| 6115G-8SA | ✔ | ✘ | ✘ | ✘ |
| 6115G-8SA-N | ✔ | ✘ | ✔ | ✔ |
For a more details contact Photo-Sonics International.
