IRIG Video Inserters

ITS products can overlay or insert data, text & graphics into multiple video streams as required. Systems are available to be installed as rack-mount units, vehicle and airframe mount or VME bus cards.

Click images to enlarge.

The 6225GC Video Graphics and GPS Time Inserter provides for the insertion of a GPS synchronised time message

Model 6225GC Video and GPS Time Code Inserter

The 6225GC Video Graphics and GPS Time Inserter provides for the insertion of a GPS synchronised time message, movable and boresight crosshair and a field-of-view box into an applied RS-170, NTSC, S-Video or PAL video signal. Additionally the unit provides for the insertion of user generated alphanumeric annotation and full control of the format of the display is accomplished by commands via a serial RS-232 port.

Model 6055C-nGHD HD Video and Data Insertion System

Model 6055C-nGHD HD Video and Data Insertion System

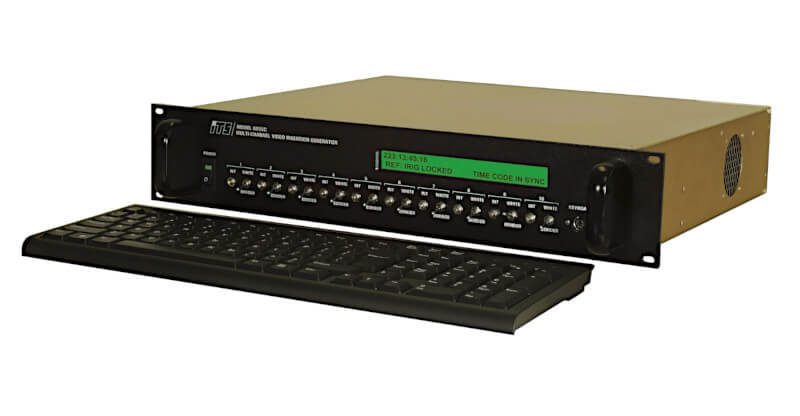

The 6055C-nGHD is an high precision multi-channel HD-SDI video insertion system designed for test range applications.  This system decodes time from an incoming GPS signal and inserts IRIG-B time code into the image and the metadata of each image frame. For more details click here.

Model 6055B Multi-channel IRIG Inserter

Model 6055B Multi-channel IRIG Inserter

The ITS Model 6055B Multi-channel IRIG Inserter provides for the insertion of alphanumeric messages, IRIG time and countdown clock, into ten, asynchronous, RS-170, NTSC or S-Video signals.

The unit is housed in a rack mountable aluminum enclosure, 19 inches wide, 3.5 inches high, 15 inches deep, powered by 100 to 240VAC, 50 to 400 Hz.

Model 6055E Multi-channel Ruggedised IRIG Inserter

Model 6055E Multi-channel IRIG Inserter

The ITS Model 6055E Multi-channel IRIG Inserter provides for the insertion of alphanumeric messages, IRIG time and countdown clock, into six, asynchronous, RS-170, NTSC or S-Video signals.

The unit is housed in a ruggedized aluminum enclosure, 8.5 inches wide, 4.25 inches high, 8.5 inches deep, powered by 100 to 240VAC, 50 to 400 Hz.

Model 6025 IRIG Time Code Decoder/Inserter

Model 6025 IRIG Decoder/Inserter

The ITS Model 6025 IRIG Decoder/Inserter is an IRIG time code decoder and video insertion generator that inserts the decoded IRIG time into a standard RS-170 video signal, The 6025 also provides for the insertion of event marks. Up to six TTL levels or contact closures can be monitored and, when triggered, a unique message will be inserted for each input. The 6025 has two modes of insertion, white (constant contrast) and black, selectable by the operator.

The unit is housed in a ruggedized 2 1/2 inch high, 8 1/2 inch wide, 8 1/2 inch deep, sheet metal enclosure and is powered by 9 to 32VDC.

Model 6095 IRIG Time Code Decoder / Video Inserter

Model 6095 IRIG Decoder/Inserter

The ITS Model 6095 IRIG Decoder/Inserter is an IRIG time code decoder and three channel video insertion generator that inserts the decoded IRIG time into a standard RS-170 or NTSC video signal. The Model 6095A is identical to the 6095 except it operates on CCIR or PAL video.

The unit is housed in a ruggedized 3.75-inch high, 4.5 inch wide, 6.0 inch deep, aluminum enclosure and is powered by 9 to 36VDC.

Model 6115 GPS Synchronized Time Code Generator

Model 6115G-8V2 GPS Synchronised Miniature Time Code Generator

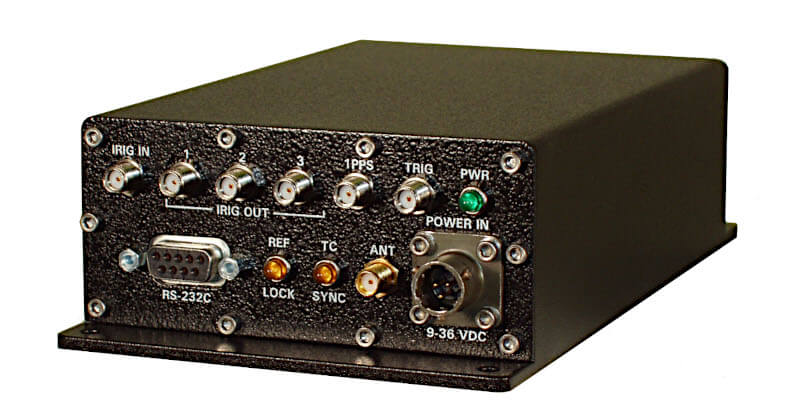

The Model 6115G-8V2 GPS Synchronised Miniature Time Code Generator provides an IRIG B time code output derived from GPS and also inserts a time message into two applied asynchronous video signals. The time code output is synchronised with UTC time unless a time offset has been programmed. A twelve channel GPS receiver automatically acquires all in-view satellites upon power up and locks an internal IRIG B time code generator to the GPS time reference. If the GPS lock is lost the 6115G-8 will automatically switch to an internal clock and continue generating the output IRIG B signal.

The 6115G-8V2 is housed in an aluminum enclosure, 7.5 inches long (including mounting flanges), 4.25 inches wide and 2.2 inches high. All controls, connectors and indicators are on the front panel.

Model 6890 Dual Mode Video Insertion Generator

Model 6980 and 6980A Dual Mode Video Insertion Generators

The ITS Model 6980 and 6980A Video Insertion Generators provide for the insertion of alphanumeric messages and IRIG time into a standard RS-170 or NTSC video signal (6980) or RS-343, 875 line (6980A).

The 6980 is housed in a 1U, 19-inch wide, 1¾ inch high, 8-inch deep, rack mountable aluminum enclosure and is powered by 100 to 240 VAC, 50/60 Hz line.



6980G-HD

Model 6980G-HD GPS Synchronised HD-SDI Video and Data Inserter

The Model 6980G-HD is a video inserter designed to insert GPS or IRIG B time into an SDI video. The unit will sense an applied SDI signal and automatically adjust to 480i, 480p, 720p or 1080i formats. A time message is inserted which is derived from either the internal GPS receiver or an applied IRIG B time code signal.

When using GPS the unit automatically acquires all in-view satellites and locks an internal disciplined clock to the time reference. If an IRIG signal is used as a reference it is decoded and used to synchronize the clock. If the GPS or IRIG lock is lost the 6980G-HD will automatically continue to run on the internal clock.

6030 VME Insertion Generator

Model 6030 Video Insertion Generator - VME Bus

The ITS Model 6030 Video Insertion Generator is designed to plug into a standard VME backplane and generates alphanumeric characters and graphics which are inserted into an input RS-170 or NTSC video signal.

The 6030 is contained in a dual high 6U VME card and occupies a single 0.8 inch slot.

Model 6090 VME Video Insertion Generator

Model 6090 IRIG B Video Encoder Inserter - VME Bus

The ITS Model 6090 IRIG B Video Encoder Inserter contains an IRIG B time code decoder, a video data edge encoder, an alphanumeric character generator and a reticle generator all of which may be inserted into an input RS-170, NTSC or PAL/CCIR video signal. The edge encoding includes automatic error correction code generation.

The 6090 is contained in a dual high 6U VME card and occupies a single 0.8 inch slot.

Model 6191A VME Video Insertion Generator

Model 6191A IRIG B Video Encoder Inserter - VME Bus

The ITS Model 6191A Video Insertion Generator contains, an alphanumeric character generator, a video data edge encoder, a boresight reticle generator and two movable symbol generators, all of which may be inserted into an input RS-170, NTSC or PAL/CCIR video signal. The edge encoding includes automatic error correction code generation. The 6191A is a memory mapped slave subsystem operating on the VME bus. Message generation and symbol positioning is controlled by program transfers via the VME bus.
