ADV-301-1340 Multi Input Video Splitter

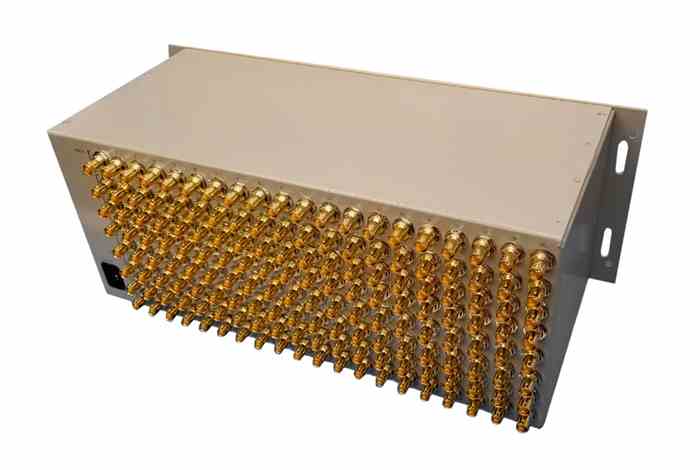

Rear view of the ADV-301-1340
Introduction:
The ADV-301-1340 unit consists of forty (40) 1-in, 3-out analogue video cards, each designed to be separately removable for ease of repair. Each output has unity gain relative to the input. All inputs and outputs accept BNC cables.
Manufactured from 0.188” thick AL alloy, the chassis has slide rail mounting holes to fit CLB-203-22 rails. Designed to comply with Mil-Std-810G, the ADV-301-1340 will operate from -40° to +71°C, and up to 15240 m (50,000 Ft) in a non-pressurised area.
The system is powered by standard 115 VAC 60 Hz power, and qualified to MIL-STD-704D, 1275. EMI qualified to MIL-STD-461.
Key Specifications:
| Signal Input / Output | Single-ended |
| Gain | Unity |
| Input Voltage | 115 VAC, 60 Hz |
| Power Consumption | 10 Watts nominal |
| Input Signal Amplitude | 0.5 to 5.0 V peak-to-peak |
| Bandwidth | Flat within ± 0.4 dB from 30 Hz to 30.0 MHz at 1 V peak-to-peak output, gain = 1 |
| Noise | 0.01 peak-to-peak at 1V peak-to-peak output, gain = 1 |
| Harmonic Distortion | Less than 2.5% at 1V peak-to-peak output, gain = 1 |
| Ripple | Less than 1.5V peak-to-peak |
| Reverse Polarity Protection | Provided 50 VDC Transient @ 100 mSec |
| Wieght | 5.4 Kg (12 lbs) nominal |
| Dimensions | 432 x 178 x 203 mm (17 x 7 x 8”) L x W x D |
For a more details contact Photo-Sonics International.
