MDR Analogue Input Modules
As part of the HEIM DATaRec® 4 MDR (Modular Data Recorder) system, various Modules and Accessories are available from Safran Data Systems. These include the following Analogue Input Modules. Full datasheets are available on request.
![MDR Analogue Input Module Comparison Table](/media/5uaa32xa/sds_mdr_analoguemodulecomparison_1200x624.png?anchor=center&mode=crop&width=600&height=312&format=auto&quality=30&rnd=133295868812430000)

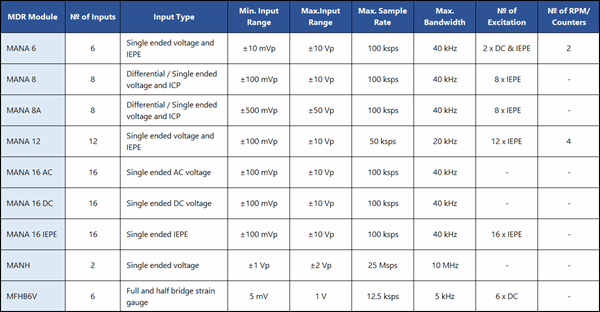

MDR Analogue Input Module Comparison Table
Click here to view Digital Input & Bus Interface Modules, Video Input Modules, Hybrid Interface Modules , and here for Storage Modules.

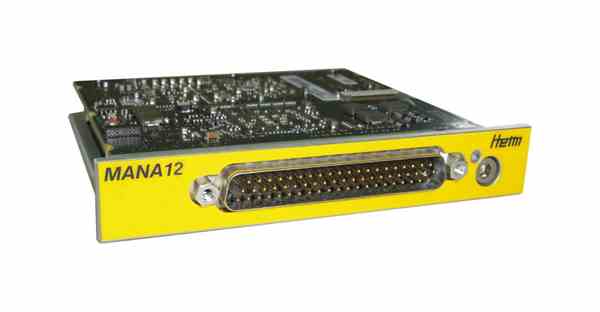

MANA 12, 16 - 12 & 16 channel analogue voltage input module.
Input Signal : Single ended, max 20 Vpp
Input Ranges: ±100 mVp, ±200 mVp, ±500 mVp, ±1 Vp, ±2 Vp, ±5 Vp, ±10 Vp (module variant dependant).
This module can be fitted in a MDR mainframe in combination with any other HEIM DATaRec® 4 MDR module(s) to build a multi channel recording system.
![MANA 12 analogue voltage input module for MDR flight test recorder.](/media/ahxi0bqp/sds_mdr_mana12_1200x624.jpg?anchor=center&mode=crop&width=600&height=312&format=auto&quality=30&rnd=133295868813400000)

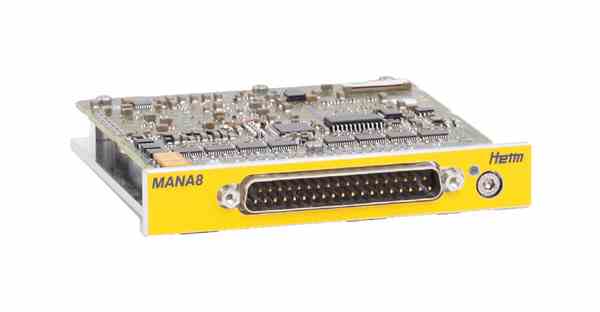

MANA 8 - 8 channel analogue voltage / ICP input module.
Input Signal : Differential / Single ended, max 20 Vpp (module variant dependant).
Input Ranges: ±100 mVp, ±200 mVp, ±500 mVp, ±1 Vp, ±2 Vp, ±5 Vp, ±10 Vp.
This module can be fitted in a MDR mainframe in combination with any other HEIM DATaRec® 4 MDR module(s) to build a multi channel recording system
![MANA 8 analogue voltage input module for MDR flight test recorder.](/media/yovgmclc/sds_mdr_mana8_1200x624.jpg?anchor=center&mode=crop&width=600&height=312&format=auto&quality=30&rnd=133295868814400000)
MANA 8A - 8 channel analogue voltage / ICP input module.
Input Signal : Differential / Single ended, max 20 Vpp.
Input Ranges: ±500 mVp, ±1 Vp, ±2 Vp, ±5 Vp, ±10 Vp, ±20 Vp, ±50 Vp.
This module can be fitted in a MDR mainframe in combination with any other HEIM DATaRec® 4 MDR module(s) to build a multi channel recording system.
![MANA 8A analogue voltage input module for MDR flight test recorder.](/media/yovgmclc/sds_mdr_mana8_1200x624.jpg?anchor=center&mode=crop&width=600&height=312&format=auto&quality=30&rnd=133295868814400000)

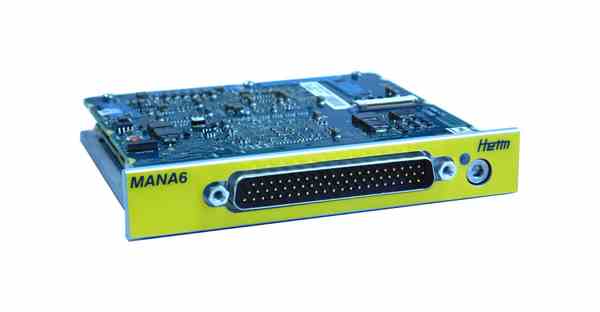

MANA 6 - 6 channel analogue voltage input module (2 with RPM) 2 excitation DC voltage outputs.
Input Signal : Single ended, max 20 Vpp.
Input Ranges: ±10 mVp, ±20 mVp, ±50 mVp, ±100 mVp, ±200 mVp, ±500 mVp, ±1 Vp, ±2 Vp, ±5 Vp, ±10 Vp.
This module can be fitted in a MDR mainframe in combination with any other HEIM DATaRec® 4 MDR module(s) to build a multi channel recording system.
![MANA 6 analogue voltage input module for MDR flight test recorder.](/media/jm3d5am1/sds_mdr_mana6_1200x624.jpg?anchor=center&mode=crop&width=600&height=312&format=auto&quality=30&rnd=133295868813530000)

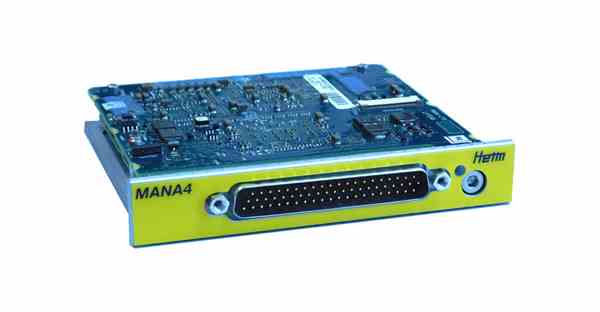

MANA 4 - 4 channel analogue voltage input module.
Input Signal : Single ended, max 20 Vpp.
Input Ranges: ±10 mVp, ±20 mVp, ±50 mVp, ±100 mVp, ±200 mVp, ±500 mVp, ±1 Vp, ±2 Vp, ±5 Vp, ±10 Vp.
This module can be fitted in a MDR mainframe in combination with any other HEIM DATaRec® 4 MDR module(s) to build a multi channel recording system.
![MANA 4 analogue voltage input module for MDR flight test recorder.](/media/xzzbbowt/sds_mdr_mana4_1200x624.jpg?anchor=center&mode=crop&width=600&height=312&format=auto&quality=30&rnd=133295868813530000)

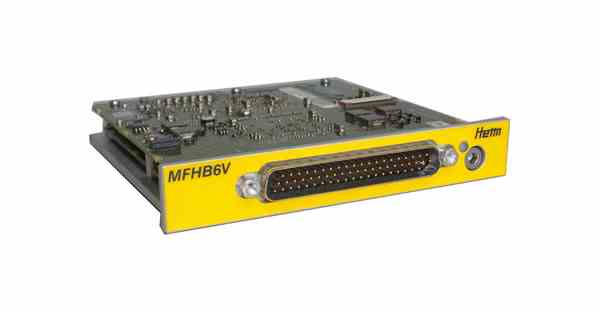

MFHB6V - 6 channel strain gauge input module.
Each channel consist of a complete independent signal chain with programmable excitation, strain gauge, anti aliasing filter, A/D converter, digital FIR filter, shunt calibration and provides its own IRIG106 chapter 10 data stream packed mode 16 or 32 bit analogue data.
Input Signal : Single ended, max 20 Vpp.
Input Ranges: ±5 mVp, ±10 mVp, ±20 mVp, ±50 mVp, ±100 mVp, ±200 mVp, ±500 mVp, ±1 Vp.
This module can be fitted in a MDR mainframe in combination with any other HEIM DATaRec® 4 MDR module(s) to build a multi channel recording system.
![MFHB6V Strain Gauge input module for MDR flight test recorder.](/media/sxypxpt5/sds_mdr_mfhb6v_1200x624.jpg?anchor=center&mode=crop&width=600&height=312&format=auto&quality=30&rnd=133295868815200000)
Please contact our sales department for further information or if you have an enquiry regarding a data type you wish to record and not listed above.
