MDR Flight Test Data Recorder

Introduction:

The DATaRec®MDR family from Heim / Safran Data Systems continues to set the standard in flight test data recording for today and tomorrow.

By providing flight test engineers with the versatility to record sensor, video, and bus data in complex and harsh airborne environments, the MDR has earned itself the reputation as the go to flight test data recorder.

The data recorder's environmental specifications pass MIL-STD-810F for temperature, humidity, altitude, vibration, shock and acceleration, meaning that continuous and accurate data measurements are being recorded when the aircraft is performing at extremes. Safran Data Systems have had the performance validated so you don't have to.

A rugged mainframe with a capacity of either 2, 4, or 8 signal interface modules forms the core of a fast, high capacity system ready to handle both the lightest and most extensive test requirements. The mainframe offers inbuilt Ethernet, voice, and IRIG interfaces, along with an integrated GPS receiver allowing a master clock to keep precision time if an IRIG time source is not available.

Easily expandable, multiple MDR units can be tethered in a master slave arrangement, or a network of XMA Data Acquisition Units can be located closer to sensor in remote corners of the aircraft and used to broadcast their data to an MDR as a Distributed Data Acquisition System.

Data can be recorded in IRIG-106 chapter 10 data format either onto a CF card or removable sealed solid state memory cartridge, and with an appropriate interface module can be broadcast to a telemetry transmitter.

A wide range of Analogue Input Modules, Digital Input & Bus Interface Modules, Video Input Modules, Hybrid Interface Modules, and Storage Modules are available.

Key Features:

  • Scalable Mainframes: 2, 4, or 8 slots for signal interface cards
  • Full spectrum of Interfaces: PCM, Ethernet, ARINC 429, MIL 1553, CAN, analogue, video, serial, discrete…
  • Easy Setup & Re-configuration: In-the-field configuration, adaptable to any scenario
  • Multi-channel Recording: Simultaneous recording of multiple data subsets in separate files on various storage media
  • Hybrid Modules: Up to 4 different data types within one module

Configuration:

Select a mainframe to best suit your application and channel count

Model

Module Capacity

Agg. Data Rate

Memory Type

Mounting

Comment

MDR-2sf

2

240 Mbps

CF Card

Cockpit



MDR-2sf bl

2

240 Mbps

CF Card

Cockpit

Black

MDR-4sfCF

4

240 Mbps

CF Card

Cockpit



MDR-4sfRC - ATR

4

240 Mbps

Storage Media Receiver

ATR



MDR-4sfRC - SDP

4

240 Mbps

Storage Media Receiver

Screw Down Plate



MDR-4sfRC -e ATR

4

240 Mbps

Storage Media Receiver

ATR

PCIe enabled

MDR-4sfRC -e SDP

4

240 Mbps

Storage Media Receiver

Screw Down Plate

PCIe enabled

MDR-4shRC ATR

4

800 Mbps

Storage Media Receiver

ATA



MDR-4shRC SDP

4

800 Mbps

Storage Media Receiver

Screw Down Plate



MDR-4shRC-e ATR

4

800 Mbps

Storage Media Receiver

ATA

PCIe enabled

MDR-4shRC-e SDP

4

800 Mbps

Storage Media Receiver

Screw Down Plate

PCIe enabled

MDR-8sfRC+ ATR

8

240 Mbps

Storage Media Reciever

ATA



MDR-8sfRC+ SDP

8

240 Mbps

Storage Media Receiver

Screw Down Plate



MDR-8sfRC-e ATR

8

240 Mbps

Storage Media Receiver

ATA

PCIe enabled

MDR-8sfRC-e SDP

8

240 Mbps

Storage Media Receiver

Screw Down Plate

PCIe enabled

MDR-8shRC+ ATR

8

800 Mbps

Storage Media Receiver

ATA



MDR-8shRC+ SDP

8

800 Mbps

Storage Media Receiver

Screw Down Plate



MDR-8shRC-e ATR

8

800 Mbps

Storage Media Receiver

ATA

PCIe enabled

MDR-8shRC-e SDP

8

800 Mbps

Storage Media Receiver

Screw Down Plate

PCIe enabled









Now add your Analogue Input ModulesDigital Input & Bus Interface ModulesVideo Input Modules, or Hybrid Interface Modules.

Good to know:

  • Your data will be protected from power supply interruptions by capacitor backed controlled shut down.
  • All your data time is stamped and synchronised to 100 nSec accuracy at the front end.
  • An easy to use front panel display allows you to set up and check the system status.
  • You'll be able to recall up to 16 full configuration settings from those front panel controls.
  • You'll never miss a test with Auto Record on power up mode.

Gallery

MDR-2 Cockpit Mount Flight Test Data Recorder

MDR-2 Cockpit Mount Flight Test Data Recorder

MDR-2 Black Cockpit Mount Flight Test Data Recorder

MDR-2 Black Cockpit Mount Flight Test Data Recorder

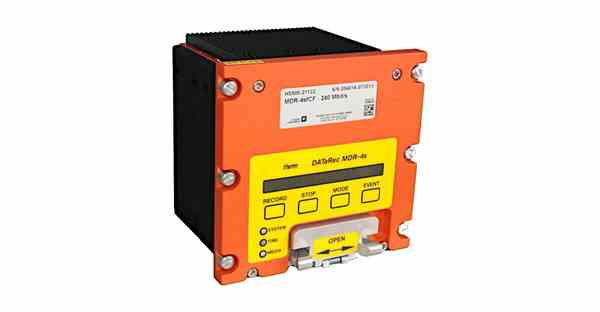

MDR4sfCF Cockpit Mount Flight Test Data Recorder

MDR4sfCF Cockpit Mount Flight Test Data Recorder

MDR4shRC Bolt Down Flight Test Data Recorder

MDR4shRC Bolt Down Flight Test Data Recorder

MDR8 Flight Test Data Recorder

MDR8 Flight Test Data Recorder

MANA12 Analogue Voltage Input Module for MDR

MANA12 Analogue Voltage Input Module for the MDR

ARINC 429 Input Module for the MDR

ARINC 429 Input Module for the MDR
