Image Motion Analysis

Photo-Sonic have partnered with Image Systems to bring you the most advanced image motion analysis softwares available. Various packages offers fast and accurate measurements of movement without strain gauge sensors.

See what happens when a car crashes, the orientation of a bullet the instant before impact, or how can an athlete can optimize their movements to gain better results. These are just three of the hundres of different applications where the movement, orientation or shape of an object, can be measured and analyzed.

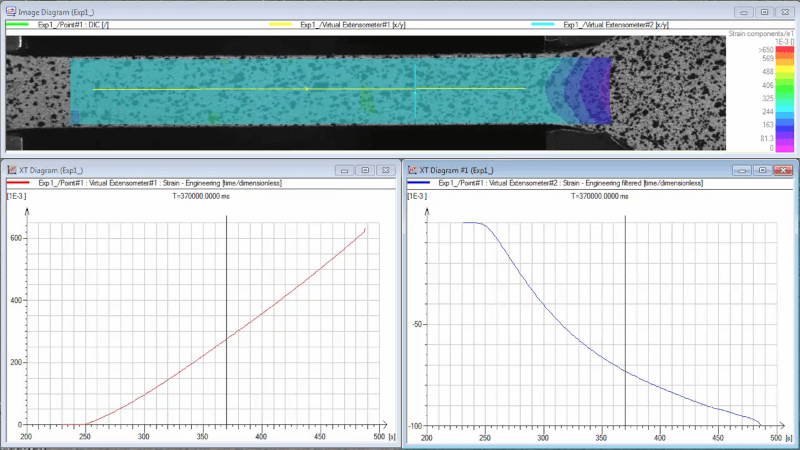

TEMA Pro Digital Image Correlation

Digital Image Correlation (DIC) allows surface deformation and strain analyses in full field by tracking the movement and deformation of a speckle pattern painted on the object of interest. A set of specific DIC tools is part of this package such as inspection lines, virtual extensometers and local points of interest to provide even more statistics on the surface. Ideal for fatigue testing, material characterization or to understand the behaviour of a structure under constrains, this non contact technique can be combined with strain gauges for even further accuracy.

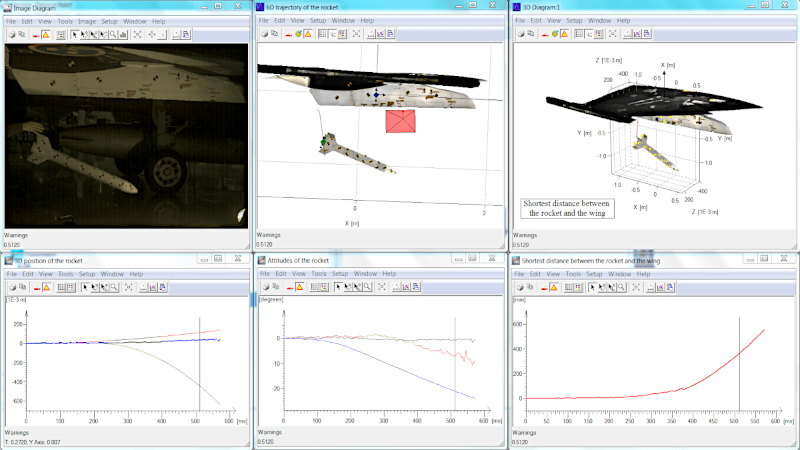

TRACKEYE Image Motion Analysis Software

TrackEye is the world leading system for advanced motion analysis on military test ranges. It has the highest available accuracy for analysis in two, three or six dimensions in applications such as Tracking Mount 3D, Fixed Camera 3D or Stores Release.

TrackEye covers the entire process from digitizing images (film or video) through automatic tracking and advanced motion analysis to a complete predefined report. The comprehensive functionality handles tracking in several levels, from 2D, 3D and 6D to the most sophisticated range motion analysis tracking requirements.

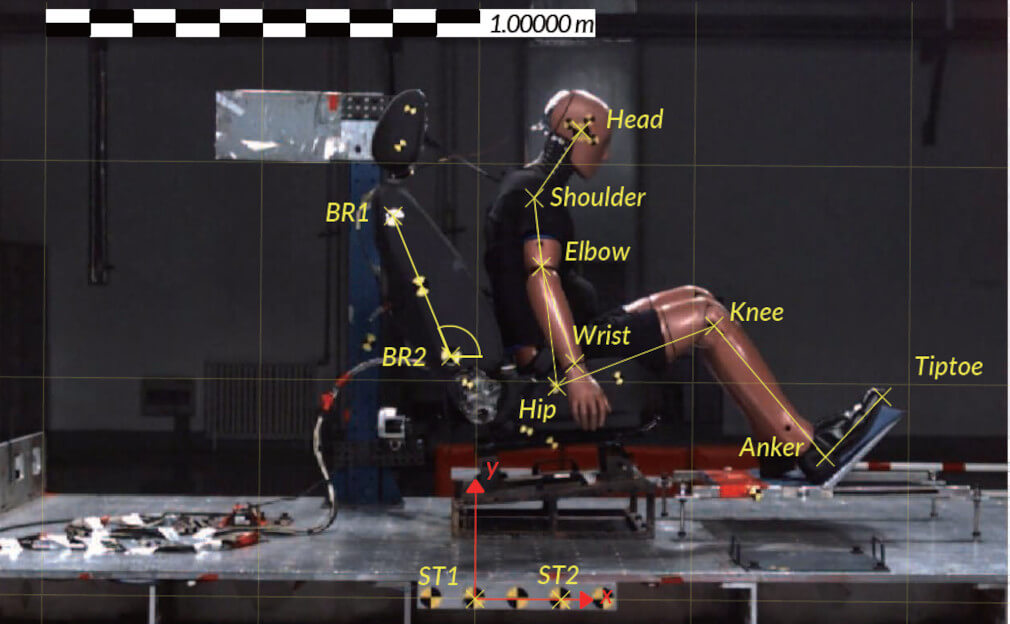

TEMA Classic Motion Analysis Software

Thanks to its high accuracy, modular structure, calculation speed and intuitive user interface, TEMA Classic is used by professionals across the globe in a wide range of applications from drop testing smart phones to improving sport performances or even optimizing processes in the automotive and aeronautical industry through the tracking of trajectories.

TEMA Classic has a wide library of tracking algorithms included in its default package which allows to track almost any kind of objects in any situation.

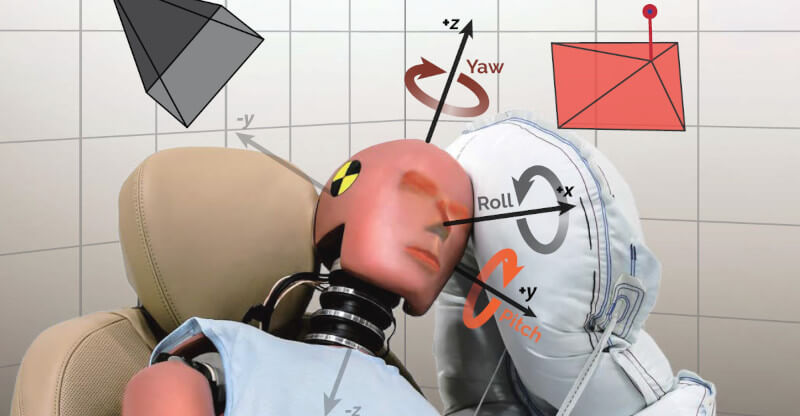

TEMA Pro Motion Analysis

In addition to TEMA CLASSIC’s set of algorithms, Outline and Digital Image Correlation are part of the default package which makes TEMA Pro the most advanced tracking suite on the market. The algorithms are based on pattern recognition or/and levels of grey and allow tracking with sub-pixel accuracy.
