MultiLED IT

MULTILED IT

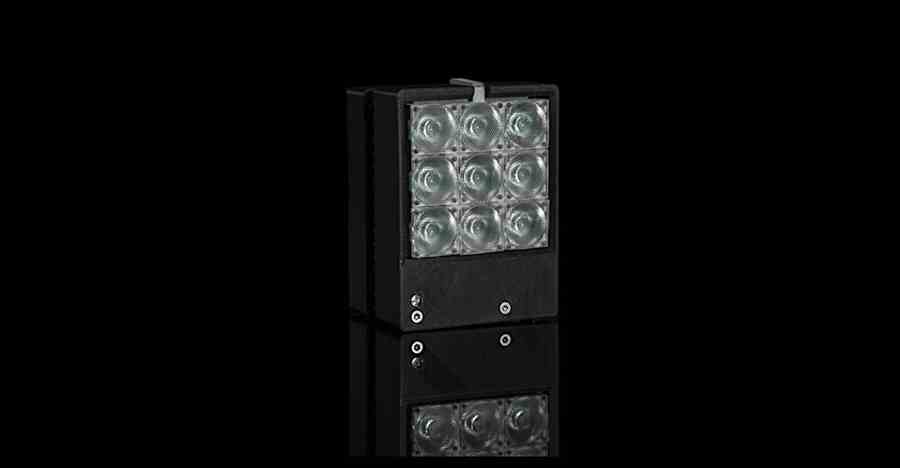

The MultiLED IT is a standalone lamp head for continuous operation.

• Easily exchangeable lens available: 15°, 25°, 45°, 75°

• IR or UV LED^†

• Continuous or pulsed operation

• Bottom and top 1/4-inch standard thread for photographic accessories and mount

With the optional MultiLed G8 controller connected, you can access further advanced functionality:

• Down to 200 nanoseconds strobe length at full output power

• Pulse delay: 220 ns

• Pulse rise time: 100 ns

• Pulse fall time: 350 ns

• Shortest usable pulse width: 200 ns

• Adjustable intensity for each channel: 0% to 100%

• Temperature and status display for each lamp head

• All communications and trigger come from the G8 Controller through 1 Ethernet cable

^† Available colours and outputs:

Colour	Wavelength	Output
UV	365 nm	15,120 Flux (mW)
UV	385 nm	20,000 Flux (mW)
UV	395 nm	20,000 Flux (mW)
UV	405 nm	20,000 Flux (mW)
IR	850 nm	12,150 Flux (mW)
IR	940 nm	12,150 Flux (mW)
