MultiLED MT

MULTILED MT Colour

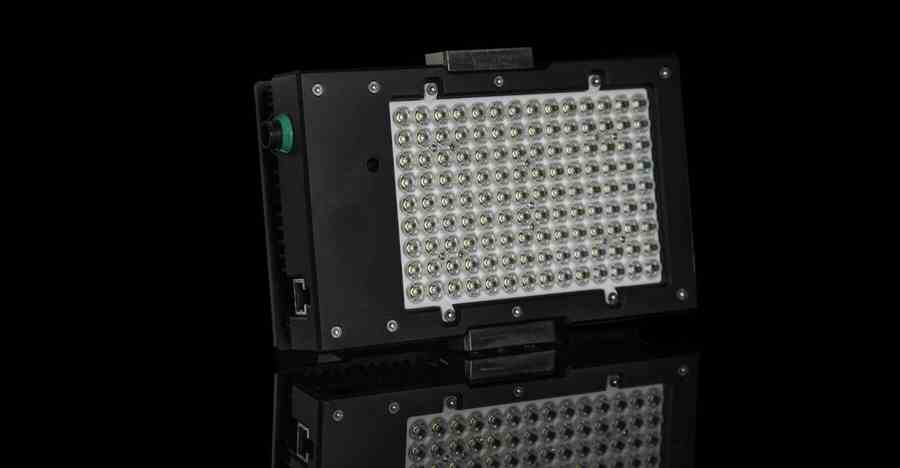

The MultiLED MT Colour is a standalone 12,000 lumen lamp head for continuous operation.

• Easily exchangeable lens available: 15°, 25°, 45°, 75°

• Colour LED ^†

• Continuous or pulsed operation

• Bottom and top 3/8-inch standard thread for photographic accessories and mount

With the optional MultiLed G8 controller connected, you can access further functionality:

• Down to 200 nanoseconds strobe length at full output power

• Pulse delay: 220 ns

• Pulse rise time: 100 ns

• Pulse fall time: 350 ns

• Shortest usable pulse width: 200 ns

• Adjustable intensity for each channel: 0% to 100%

• Temperature and status display for each lamp head

• All communications and trigger come from the G8 controller through 1 Ethernet cable



^† Available colours and outputs:

Colour	Wavelength	Output
Royal Blue	450 - 460nm	172,000 Flux (mW)
Green	520 - 535nm	30,000 lm
Amber	560-650nm	21,400 lm
Red - Orange	610 - 620nm	26,100 lm
Red	620 - 630nm	21,000 lm
Photo Red	650 - 670nm	124,000 Flux (mW)
