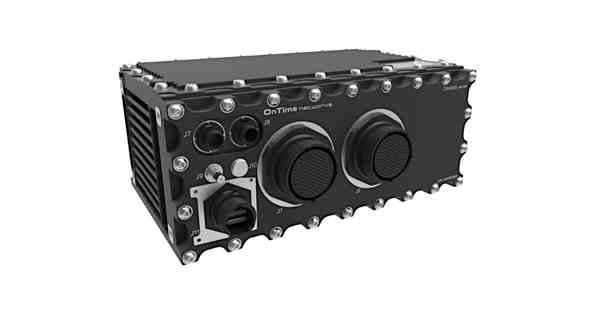

Cloudberry Aero CM-6200 Series

Fully Rugged up to 28-Port Managed Gigabit/10Gigabit Ethernet Switch


Fully Rugged up to 28-Port Managed Gigabit/10Gigabit Ethernet Switch with PTP GMC, TC/SC capability for Aerospace and Defense applications.

The Cloudberry CM-6200-MIL Series Rugged (VICTORY ready) Gigabit/10Gigabit Ethernet Switch with IEEE 1588 PTP GMC capability is a Fully Managed Layer 2/3 Ethernet Switch with up to 24 Gigabit Ethernet and four 10Gigabit Ethernet ports, specifically designed to reliably provide high-performance connectivity for extremely demanding size, weight and power (SWaP) constraints in the harsh climatically and noisy electrical demanding environments (e.g. high altitude, extreme shock, & vibration, extended temperatures, humidity, dust & water exposure, noisy EMI, dirty power) for applications on land, in the air and on sea.

The CM-6200 with its sealed IP68 aluminum chassis has been designed to meet MIL-STD-461F EMI/EMC and MIL-STD-810G thermal, shock, vibe, humidity, altitude, and ingress conditions. The unit features no moving parts, EMI filtering, and isolated MIL-STD-1275/704 power supply that protects against vehicle/aircraft voltage surges, spikes and transients.

Its performance is optimized for a large numbers of IP-enabled embedded devices, such as computers, cameras, sensors, and command-and-control equipment, deployed in manned and unmanned system platforms at the network edge.

The CM-6200 supports the latest generation of IPv6 switching, allowing it to meet the most challenging requirements for next generation DoD networks. IPv6 provides improved network security and reliability, while support for more network addresses allows for a greater number of interconnected devices. Additional management and configuration features include quality of service (QoS) prioritization, VLANs, LAG, SNMP, RSTP, VRRP, IGMP and traffic policing, providing customers the flexibility to meet their unique networking requirements.

The CM6200-MIL is a reliable and accurate PTP Grand Master Clock (GMC) or Transparent Clock/Slave Clock (TC/SC) fulfilling IEEE 1588 STD 2002 (v1) and IEEE 1588 STD 2008 (v2). Both PTPv1 and PTPv2 Slave clocks can co-exist in the same network by using the PTP version translator feature of the CM6200-MIL platform. The switch can also act as a NTP Network Time Server (NTS) and provide GPS emulation output both when enabled as a GMC and when operating as a TC/SC. GPS emulation means Pulse Per Second (PPS) output signals via GPO pins in the power connector (TTL) and NMEA telegrams via RS232 in the same connector. An IRIG-B002 output (TTL) signal can be provided via GPO pins in the power connector.

The CM6200-MIL is an advanced and highly engineered Gigabit switch that addresses complexity, enable modularity and provides growth, while delivering optimal performance for Space, Weight, Power and Cost (SWaP-C) constrained military applications onboard vehicles and aircraft platforms. The unit designed to meet the environmental requirements of MIL-STD 810G and the EMI/EMC requirements (Conducted & Radiated Emissions & Susceptibility) of MIL-STD 461F and 704E.

This fully managed, Layer 2/3 Gigabit switch provides a powerful set of networking features, including support for IPv4 multicast traffic filtering according to static filters or IGMP snooping, Virtual Local Area Networks (VLANs), port control (speed / mode / statistics, flow control), Quality of Service (QoS) traffic prioritization, Link Aggregation (802.3ad), SNMP v1/v2/v3 management, secure authentication (802.1X, ACLs, Web/CLI), redundancy (RSTP/MSTP) and port mirroring.

28VDC redundant power input with polarity protection and power hold-up (option) support is available through the 10 pin power/IO connector. The CM-6200 utilizes for single port connector requirements the Ceelok FAS-T connector for 10/100/1000BASE-T(x) and 10GBASE-T(x) copper ports and the ARINC801 optical termini in circular MIL-DTL-38999 connectors for 1000BASE-X/10GBASE-X fiber ports. For the 28 port variant the 10/100/1000BASE-T(x) ports are provided via D38999 connectors.

Key Features:

Time Distribution: The CM-6200-MIL Series is available as a reliable and accurate (< 20 nanosecond) PTP Grand Master Clock and Transparent/Slave Clock according to IEEE 1588 Std 2002 (PTPv1) or IEEE 1588 Std 2008 (PTPv2) standards, as well as NTP Network Time Server (NTS).

GPS: The CM-6200-MIL Series with PTP Grand Master Clock capability contains a built-in high accuracy GPS receiver.

Interoperability: The CM-6200-MIL Series supports all relevant IEEE Ethernet standards. Interoperability with other PTP devices is ensured based on extensive testing.

Version Translation: The CM-6200-MIL Series, with its unique embedded PTP version translator feature, allows Slave Clocks of both PTPv1 and PTPv2 to co-exist in the same network. The need for PTP version translation is driven by the fact that PTPV1 (IEEE 1588 2002) is not backward compatible with PTPv2 (IEEE 1588 2008). Both PTP versions cannot co-exist in the same network unless a PTP version translator is used. OnTime Networks offers a cost efficient solution by introducing a PTP version translation feature into its products which helps to protect your PTPv1 investments. With the embedded PTP version translation you can use your legacy PTPv1 equipment alongside your new PTPv2 equipment without the need to upgrade or change configuration of old PTPv1 equipment.

Management: The CM-6200-MIL Series offer full management based on HTTP, telnet, CLI or SNMP v1/v2/v3.

Quality of Service: The CM-6200-MIL series offers advanced traffic shaping and quality of service techniques.

Filtering: The CM-6200-MIL Series offers advanced filtering capabilities. Multicast filters can be set on the switch, based on IGMP snooping or by manual configuration of static filters. Layer 4 filtering can be done based on UDP destination or source port numbers of UDP/IP packets.

VLAN: The CM-6200-MIL offers port based VLAN (static) or dynamic VLAN according to IEEE802.1Q are supported.

Security: The CM-6200-MIL series supports to Enable/disable ports, MAC based port security, Port based network access control (802.1x), VLAN (802.1Q ) to segregate and secure network traffic, Radius centralized password management and SNMPv3 encrypted authentication and access security.

IRIG-B: The CM-6200-MIL Series with Grand Master Clock capability provides GPS emulation (NMEA and PPS 3.3V, 5V or 10V), as well as IRIG-B 002 or IRIG-B 122 outputs.

Complance: The CM-6200-MIL Series is ready to be compliant to current integrated Network Enhanced Telemetry (iNET) standards.

Software: The CM-6200-MIL series is delivered with detailed application notes as well as specific software.

Rugged: The CM-6200-MIL series is designed for the harsh aircraft and military environment. The platform offers a wide operating temperature range [-40 to +85CÂș] with ruggedized military approved connectors. The unit is designed to comply to RTCA DO 160G, and is also designed for MIL-STD 461D, -704E and -810G.

Connectors: The CM-6200-MIL series offers high performance military style connectors.

Product Variants:

Managed Industrial Ethernet End-Point Tap (EPTAP) Switch with 4x 10/100/1000BASE-TX (RJ-45) + 4x 1000BASE-X combo ports (SFP fiber ports or 10/100/1000BASE-TX (RJ-45)), with advanced filtering capabilities.

Managed Ethernet network switch, 12 x 10/100/1000BASE-TX in 12 Ceelok FAS-T connectors.

CM-6212F0-MIL (10G)
Managed Ethernet network switch, 8 x 10/100/1000BASE-TX in 8 Ceelok FAS-T connectors and 4 x 10000BASE-TX in 4 Ceelok FAS-T connectors.

Managed Ethernet network switch, 10 x 10/100/1000BASE-TX in 10 Ceelok FAS-T connectors and 1 x 1000BASE-SX in one ARINC 801 D38999 connector..

Managed Ethernet network switch, 10 x 10/100/1000BASE-TX in 10 Ceelok FAS-T connectors and 2 x 1000BASE-SX in two ARINC 801 D38999 connector.

Managed Ethernet network switch, 8 x 10/100/1000BASE-TX in 8 Ceelok FAST connectors and 4 x 1000BASE-SX in four ARINC 801 D38999 connector..

CM-6224F0- MIL
Managed Ethernet network switch, 24 x 10/100/1000BASE-TX in 2 D38999 connectors.

Managed Ethernet network switch, 24 x 10/100/1000BASE-TX in 2 38999 connectors and 4 x 10000BASE-SX in four ARINC 801 D38999 connector.
