Airborne Network Switches and Routers

Rugged, fully managed, Commercial-Off-The-Shelf (COTS) gigabit ethernet switch

Photo-Sonics International are please to offer the CloudberryAERO Series from OnTime. The product line consists of rugged, fully managed, Commercial-Off-The-Shelf (COTS) gigabit ethernet switches, routers and GPS time servers, providing timing solutions according to the IEEE 1588 PTP standard. The products are optimised for commercial and military aircraft applications, such as flight test network and military ISR mission systems.



Designed to comply with RTCA DO-160G, MIL STD 461E, MIL-STD 704E, and MIL-STD 810G standards, the CloudberryAERO Series offers solutions which can be used inside the pressure vessel as well as for external environments up to 85,000ft. Offering 10G copper or fiber connectivity, the products provide enhanced low latency network-centric solutions for critical mission data applications.



CM-6200 seriesRugged up to 52-Port Managed Gigabit/10Gigabit Ethernet Switch with PTP GMC, TC/SC capability for Aerospace and Defense applications.Ports : Up to 52 on either connectors RJ45 or SFP Fiber Optic, both in a multiple of 12.Operating Temperature: -40°C to +71°C

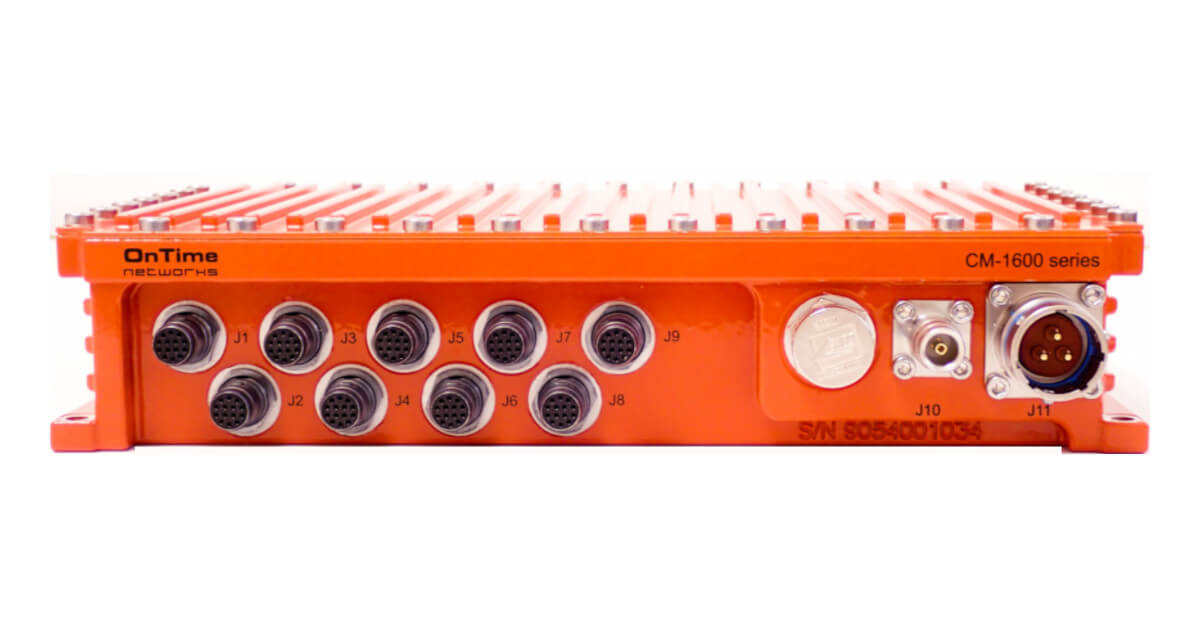

Rugged Airborne Ethernet Switch - OnTime Cloudberry AERO CM-1600

The CloudberryAERO CM-1600-LP series is a fully rugged Commercial Off The Shelf (COTS) 8 port (10/100/1000BASE) Gigabit Ethernet switch.

Ports: 8 on 8 x 14 pins Terrapin

Operating Altitude: 85,000ft

Operating Temperature: -40°C to +75°C

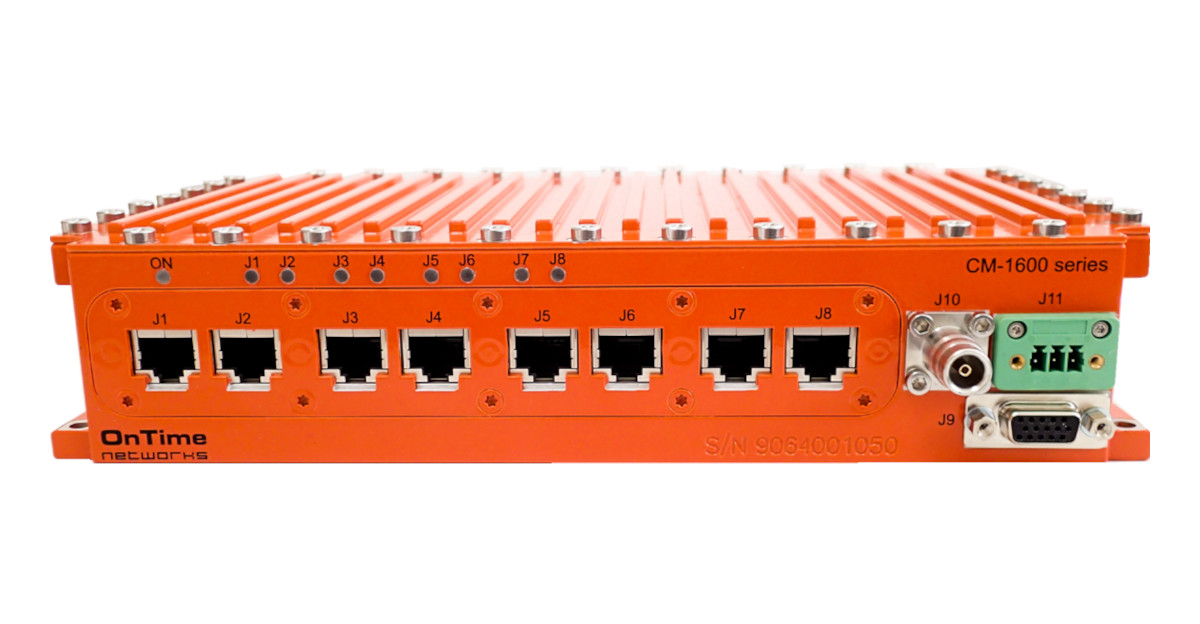

Rugged Airborne Ethernet Switch - OnTime Cloudberry AERO CM-1600-RJ45

The CloudberryAERO CM-1600-LP series is a rugged Commercial Off The Shelf (COTS) 8 port (10/100/1000BASE) Gigabit Ethernet switch.

Ports : 8 on 8 x RJ45

Operating Altitude: 85,000ft

Operating Temperature: -40°C to +75°C

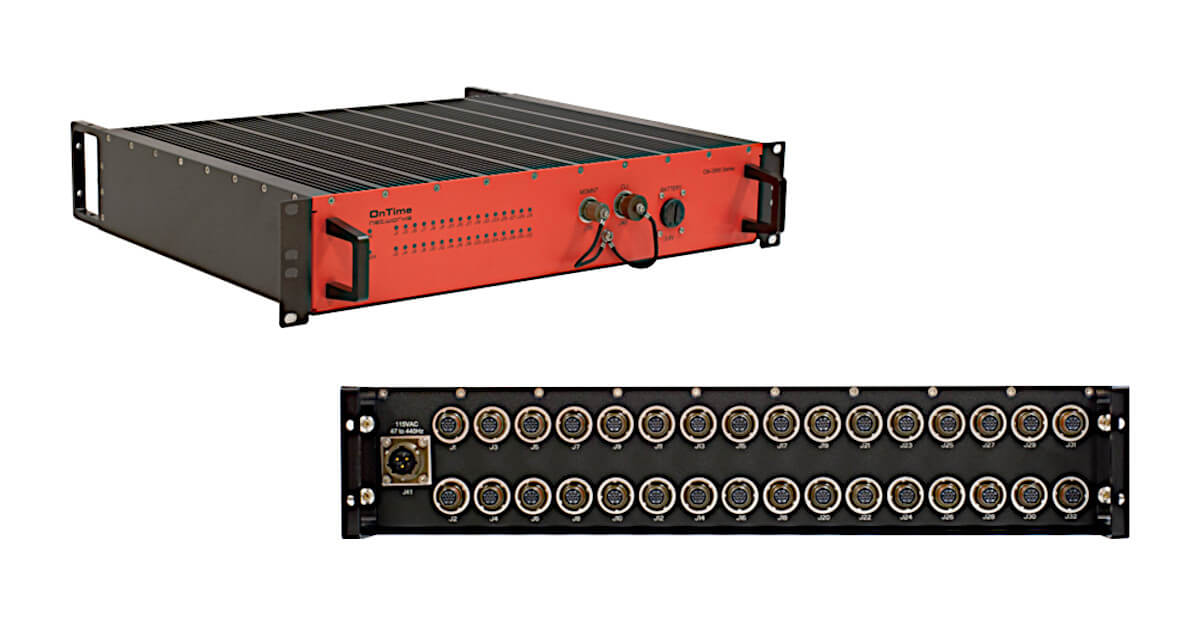

Rugged Airborne Ethernet Switch - OnTime Cloudberry AERO CM-2900

The CloudberryAERO CM-2900 Series offers a fully rugged, Commercial Off The Shelf (COTS), 32 port Gigabit Ethernet switch with PTP Grand Master Clock support with free running clock as time base optimized for aircraft and military network systems applications.

Ports : up to 32 on up to 32 x Mighty Mouse

Operating Altitude: 50,000ft

Operating Temperature: -20°C to +55°C

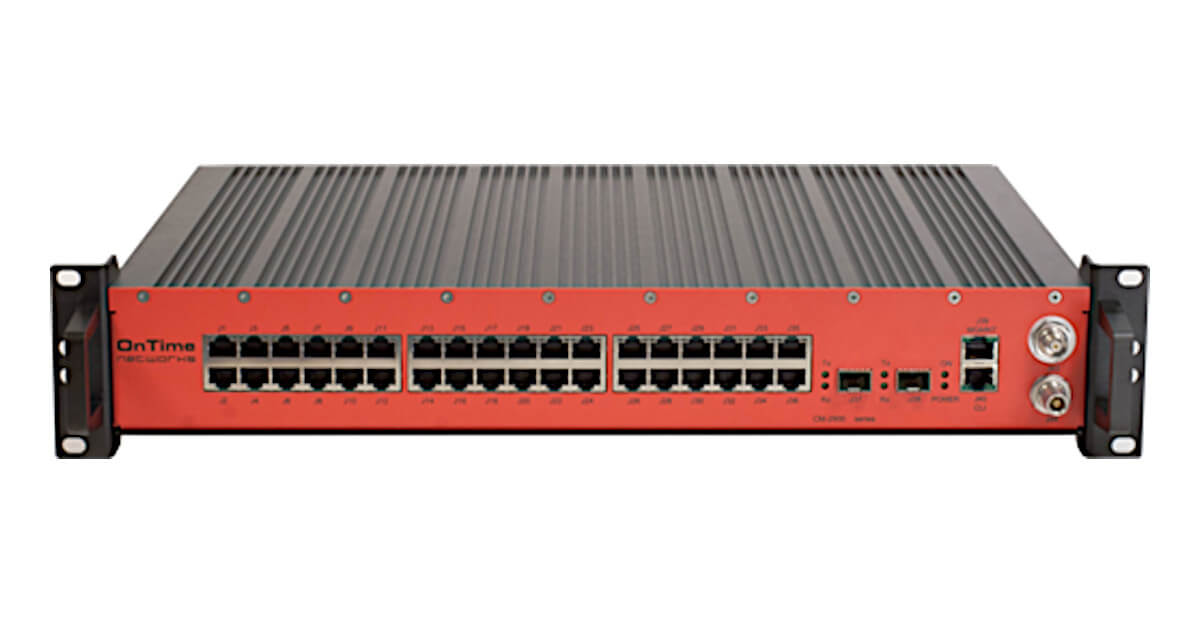

Rugged Airborne Ethernet Switch - OnTime Cloudberry AERO CM-2900-RJ45

The CloudberryAERO CM-2900-RJ45 Series is a rugged Commercial Off The Shelf (COTS) 36 port Gigabit Ethernet switch with PTP Grand Master Clock support with free running clock as time base optimized for aircraft and military network systems applications

Ports : 36 on 36 x RJ45

Operating Temperature: -15°C to +70°C

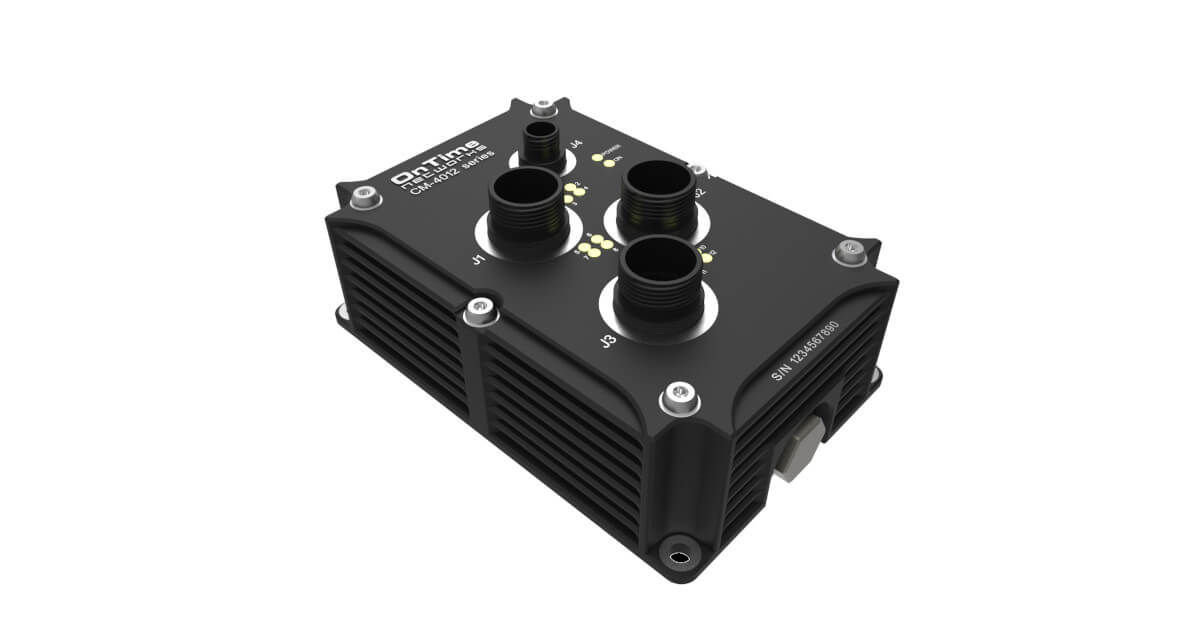

Rugged Airborne Ethernet Switch - OnTime Cloudberry AERO CM-4000 series

The new Cloudberry CM-4012F0-MM-MIL is a small form factor rugged Commercial Off the Shelf (COTS) 12-port Gigabit Ethernet (GbE) switch specifically designed to reliably provide high-performance connectivity for extremely demanding size, weight and power (SWaP) constraints in the harsh climatically and noisy electrical demanding environments.

Ports : 12 on 3 x Mighty Mouse 37 pins connectors

Operating Altitude: 50,000ft

Operating Temperature: -40°C to +71°C

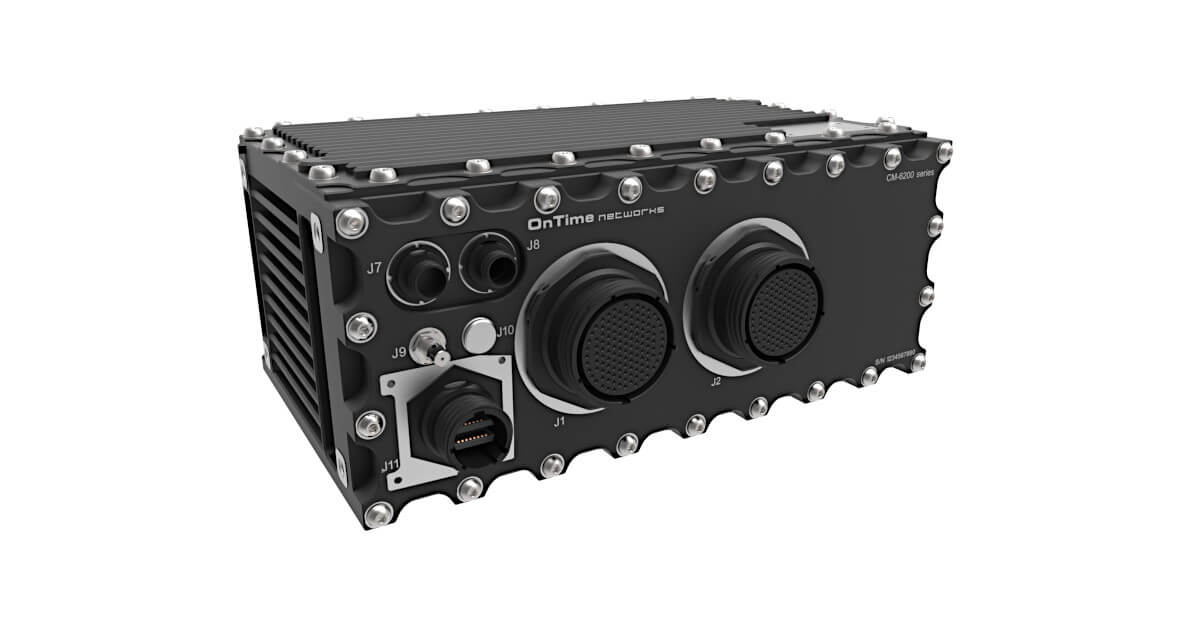

Rugged Airborne Ethernet Switch - OnTime Cloudberry AERO CM-6200 series

Fully Rugged up to 28-Port Managed Gigabit/10Gigabit Ethernet Switch with PTP GMC, TC/SC capability for Aerospace and Defense applications.

Ports : Up to 28 on a range of connectors including FAS-T and D38999 connectors.

Operating Temperature: -15°C to +70°C

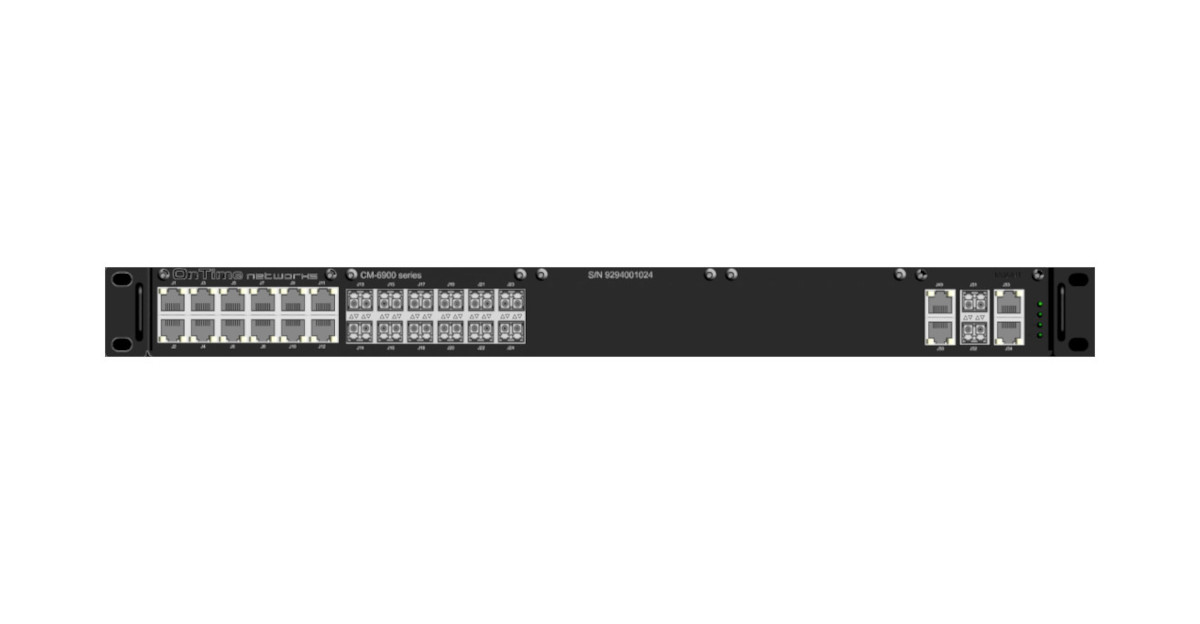

Rugged Airborne Ethernet Switch - OnTime Cloudberry AERO CM-6900 series

Rugged up to 52-Port Managed Gigabit/10Gigabit Ethernet Switch with PTP GMC, TC/SC capability for Aerospace and Defense applications.

Ports : Up to 52 on a either RJ45 copper or SFP Fiber Optics in multiples of 12.

Operating Temperature: -40°C to +71°C
