MDR Hybrid Input Modules

As part of the HEIM DATaRec® 4 MDR (Modular Data Recorder) system, various Modules and Accessories are available from Safran Data Systems. These include the following Video Input Modules. Full datasheets are available on request.

Click here to view Analogue Input Modules, Digital Input & Bus Interface Modules, Hybrid Interface Modules, and here for Storage Modules.

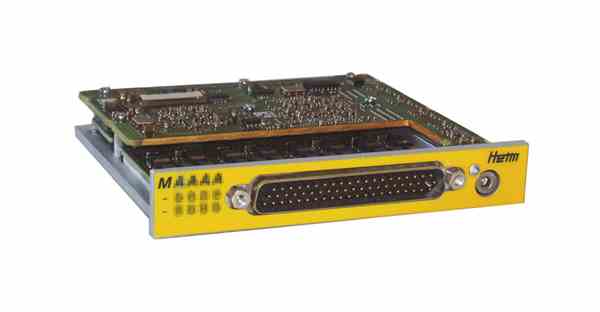

MAAAE-BBBB-AAAA - Hybrid ARINC 429 & Ethernet Input Module.

Each signal board is an independent signal part with separate channels. These modular signal board concept in general allows a wide span of channel type combinations and functions.

The module has a total of 3 ARINC 429 inputs and 1 Ethernet input.

MAMU - Hybrid ARINC 429, ARR, & PCM Input Module

The MAMU module supports 2 dual –redundant MIL-STD-1553B input channels, 2 PCM input channels and 8 ARINC 429 input channels.

The module is available in the following configuration: HS510-3040 transformer coupled MIL bus version, throughput mode PCM data 100 Ohm input impedance HS510-3040/1 direct coupled MIL bus version, throughput mode PCM data 100 Ohm input impedance HS510-3040/2 transformer coupled MIL bus version, packed, unpacked and throughput mode PCM data 75 Ohm input impedance Other versions on request.

MEEEE-BBBB-CCMM - Hybrid Ethernet Input Module

Each signal board is an independent signal part with separate channels. These modular signal board concept in general allows a wide span of channel type combinations and functions.

The module has a total of 8 Ethernet data channels on 4 Physical inputs (2 100T Ethernet Physical inputs; 2 Gigabit Ethernet Physical inputs).

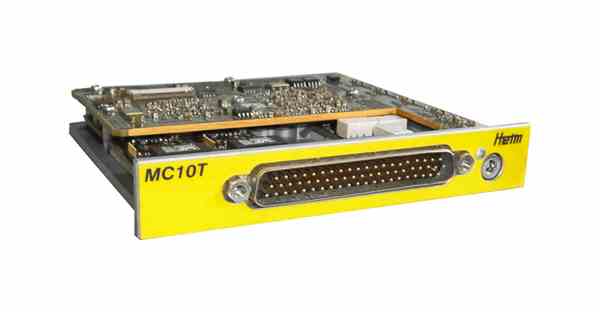

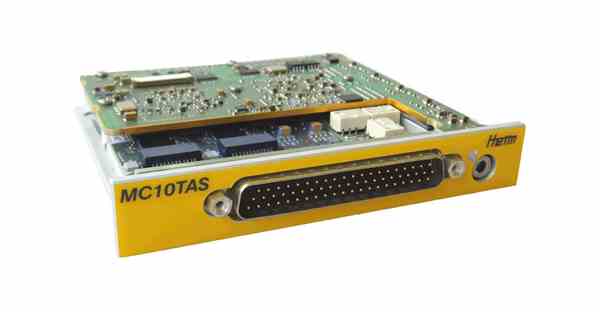

MC10T & MC10TA - Telemetry Transmit Output, PCM Input with Ethernet

The MC10T/MC10TA module is a hybrid module with a combination of 4 internal signal boards.

1 Telemetry Transmit data channel on 1 Physical output.
1 PCM data channel for recording of the Telemetry Transmit data channel.
2 PCM data channels on 1 Physical input and 1 Physical output;

Physical output is configurable:

Either E to E loopback from the PCM input or a second telemetry downlink output (replica of the Telemetry Transmit output)

4 Voice data channels on 4 Physical inputs and 4 Voice Loopback outputs (MC10TA only), 4 Ethernet Data channels on 2 Physical inputs/outputs.
