MDR Storage Modules
As part of the HEIM DATaRec® 4 MDR (Modular Data Recorder) system, various Modules and Accessories are available from Safran Data Systems. These include the following Storage Modules. Full datasheets are available on request.
Click here to view Analogue Input Modules, Digital Input & Bus Interface Modules, Video Input Modules, and here for Hybrid Interface Modules.
NEW - DATA AT REST PROTECTION
RSM 500-S Rugged Storage Module (Secure)
A 500 GB secure and rugged storage module for the Heim MDR & GMDR recorder series with FIPS-140-2 level 2 validated SSD containing FIPS-197 certified hardware-based AES-256 XTS encryption engine.
Operating temperature -40ºC to +71ºC MIL-STD-810F Method 501 and 502m.
Secure encrypted storage module for use in Heim MDR & GMDR recorders (may require firmware update). The RSM 500-S can also be read from a PC using a DSU3-S secure docking station.
NEW - DATA AT REST PROTECTION
RSM 4000-S Rugged Storage Module (Secure)
A 4 TB secure and rugged storage module for the Heim MDR & GMDR recorder series with FIPS-140-2 level 2 validated SSD containing FIPS-197 certified hardware-based AES-256 XTS encryption engine.
Operating temperature -40ºC to +71ºC MIL-STD-810F Method 501 and 502m.
Secure encrypted storage module for use in Heim MDR & GMDR recorders (may require firmware update). The RSM 4000-S can also be read from a PC using a DSU3-S secure docking station.
RSM - Rugged Storage Module
Solid state storage modules in 128 GByte, 256 GByte, 512 GByte 1 TB (MDR/GMDR only) 2 TB (MDR/GMDR only) capacity.
Operating temperature -40ºC to +71ºC MIL-STD-810F Method 501 and 502m, Procedure II ...
Rugged storage module for use in Heim MDR & GMDR recorders.

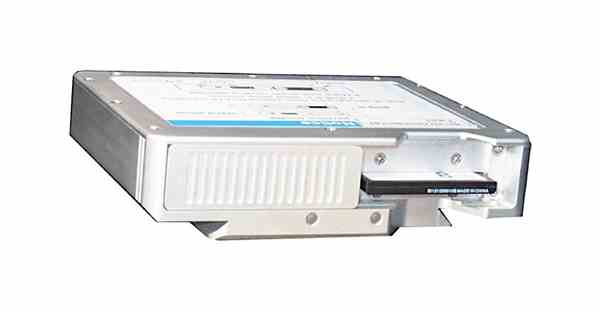

RSM-CF - CF Card Receiver
CF card receiver module for MDR-8, MDR-4, GMDR, MCSR, MCSRE, DSR and RSR.
Operating temperature -40ºC to +71ºC MIL-STD-810F Method 501 and 502m, Procedure II ...

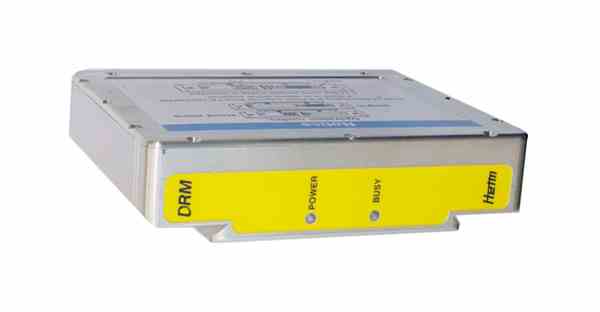

DRM - Data Raid Module
The DRM are Data Raid Modules available with solid state drives with 2 TByte and 3.2 TByte capacities.
Operating temperature -15ºC to +55ºC.
Data Raid storage module for use in MDR4shRC, MDR4sRC, MDR8shRC, MDR8sfRC, MDR8sRC, MCSR, MCSRe, DSR19", W100, W101, DS-U3, GMDR6, GMDR12, GMDR12MDS.

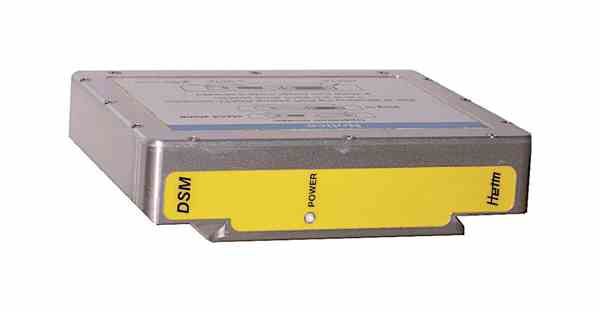

DSM - Data Storage Module
The DSM modules are data storage modules available with 256 GByte, 512 GByte, 1 TByte, 2 TByte, and 3.6TBytes capacities.
Operating temperature -5ºC to +55ºC.
Data storage module for use in Heim MDR & GMDR recorders.
RRM - Rugged Raid Module
The RRM are Rugged Raid Module is available with a 2 TByte solid state drive.
Operating temperature -40ºC to +71ºC MIL-STD-810G Method 501.5 Procedure II ...
Rugged raid storage module for use in MDR4shRC, MDR4sRC, MDR8shRC, MDR8sfRC, MDR8sRC, MCSR, MCSRe, DSR19", W100, W101, DS-U3, GMDR6, GMDR12, GMDR12MDS.

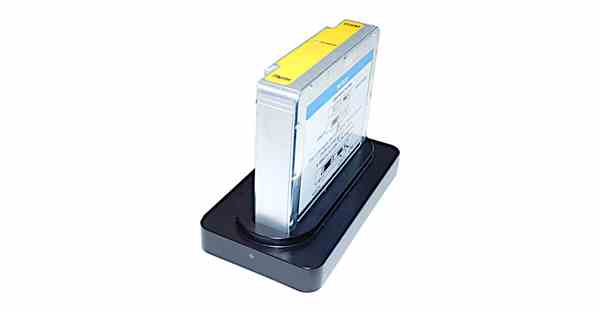

DS-U3 - Docking Station
The DS-U3 is a USB3 Docking Station for the Heim MDR & GMDR Storage Modules. The DS-U3 allows access to RSM, DSM, RSM FW, RRM, DRM, and RSM-CF storage modules via a computer for downloading the recorded data files.
DSU3-S - Secure Docking Station
The DSU3-S is a USB3 Docking Station for the Heim RSM 500-S and RMS 4000-S encrypted Storage Modules. The DSU3-S allows access to data on these cyber secure storage modules via a computer for downloading the recorded data files.
Please contact our sales department for further information or if you have an enquiry regarding a data type you wish to record and not listed above.
