microMA - Wireless Micro Modular Data Acquisition and Recording System
microMA - Airborne Data Acquisition Unit
Introduction:
The microMA is a modular data acquisition and recording system equally suited both as a tool for airborne troubleshooting and as a component in a traditional flight test instrumentation suite.
Wireless communication and an 32GB internal memory permit rapid deployment, saving cable runs, time and money. Simply select an acquisition cell to match the sensors, screw onto a controller cell, fasten in place close to the sensors, and configure wirelessly from a laptop PC. And when those sensors are in constrained environments, you'll be grateful for the microMA's 24 mm diameter.
Truly autonomous, the microMA can be powered from the aircraft or optional microMA battery cells. Multiple microMA devices can be linked with each other or to an XMA acquisition system or MDR data recorder.
Key Advantages:
-
Minimal intrusion to the test vehicle (less wires or no wires at all).
-
Minimal installation and removal effort due to very small and cylindric form factor requiring a standard clamp.
-
Autonomous power supply (long-life battery) and wireless connectivity removes the need of installing any cable or harness in the aircraft.
-
Continues the push towards digitization as close as possible to the sensor.
-
Tool for a wide variety of use cases (from a single stand-alone measurement to 100’s of MA integrated in a complex network).
-
DO-160G / MIL-STD-810G compliant, with operating temperature range from -40°C to +85°C, and altitude to 70,000 ft.
Configuration:

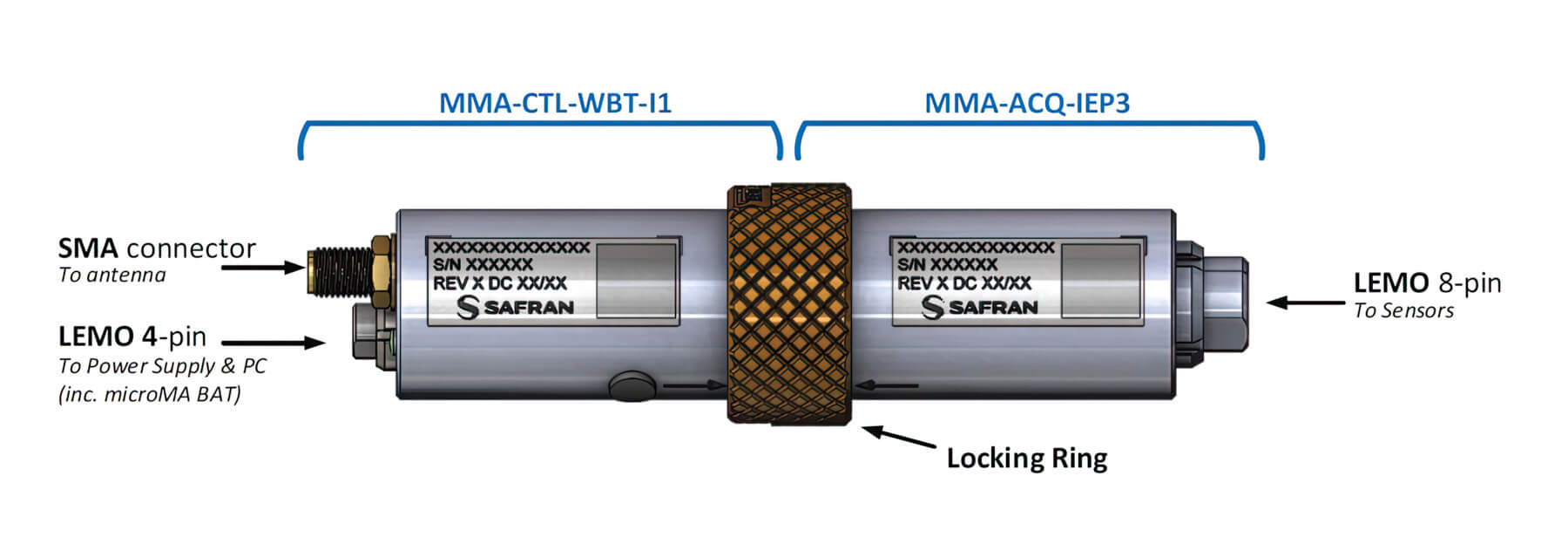

The microMA is designed on a modular architecture based on acquisition cell, controller cell, and internal or external battery cell. N.B. Future controller cells are planned to support Power over Ethernet.
A microMA device is made of two cells, one controller cell and one acquisition cell.

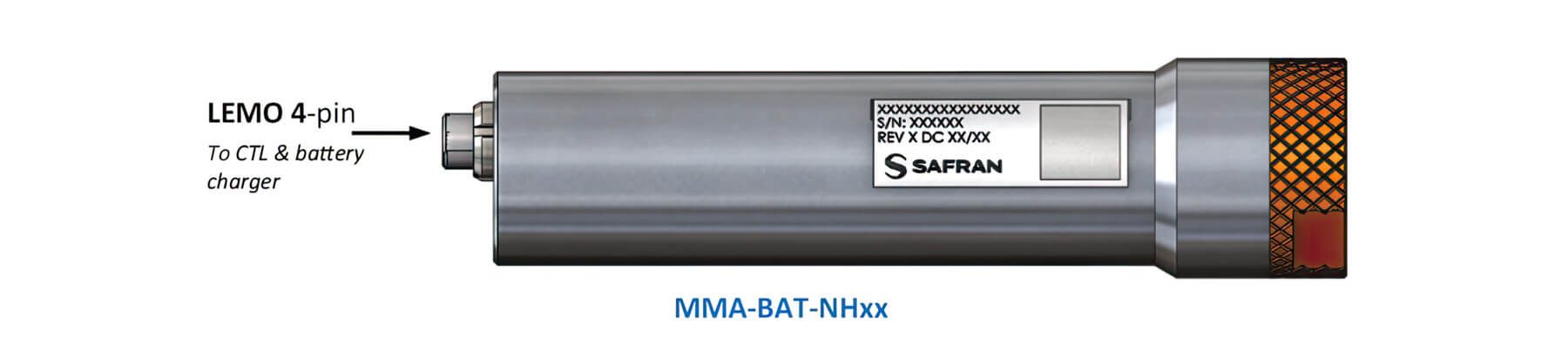

A microMA device can be powered with an optional battery pack.
Acquisition Modules:
MMA-ACQ-IEP3 - 3 ch IEPE Accelerometer + TEDS
• Conditioning for 3 channels of IEPE / ICP sensors (e.g. accelerometers, microphones).
• Range: +/- 10 V to +/- 1 V
• Accuracy: +/- 0.2%
• Bandwidth: up to 256 ksp
• TEDS compatible
• Support for additional sensor types on the road map.
Controller Modules:
MMA-CTL-WBT - WiFi + Bluetooth + USB 2.0
• WiFi, Bluetooth, and USB
• Data link & Power Input
• Streaming (Ch. 10, IENA, & DAR)
• Recording on internal 32 GB memory.
