MultiLED CG8

MULTILED CG8

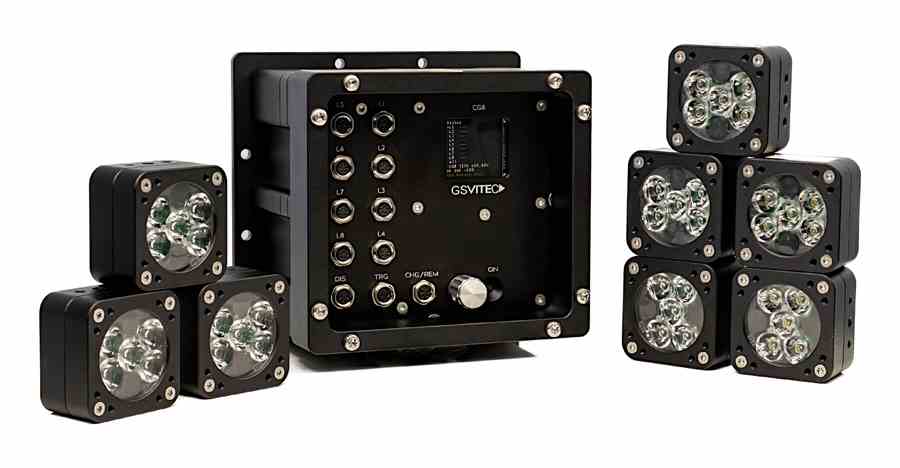

The MultiLED CG8 is a High-G LED solution with field changeable lens. It may be operated in either continuous or pulse mode with the CG8 Controller.

• CG8 supplies power for 1 to 8 „CG8-L1“ lamp heads

• CG8 battery pack attached to CG8 control unit (exchangeable)

• Charger input

• Strobe via trigger signal (TTL) down to 1 μs rise time and 2 μs fall time (invertible)

• Trigger in: TTL, invertible

• Enable input to disable trigger input

• 50 seconds of continuous operation, battery capacity sufficient for 420 seconds (8 lamp heads at 100% power)

• LCD display control and monitoring

• 100 G

• 6.000 Lm continuous output per LED head, greatly increased efficiency compared to G9 due to new lens system
