MultiLED QX Mini

MultiLED QX Mini - Professional LED lighting for High Speed Photography

MULTILED QX Mini

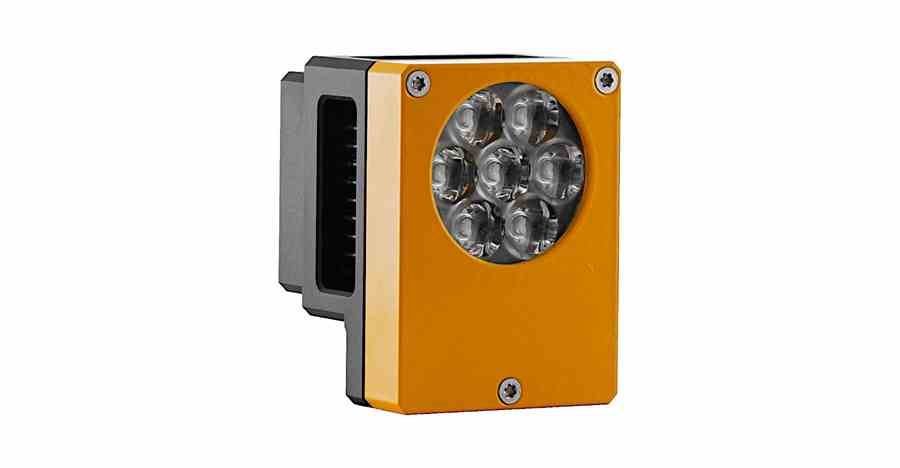

The MultiLED QX Mini is a standalone 7,000 lumen lamp head for continuous operation. It is quarter the size of an LT and has 85% of its light output.

  • 7000 Lumen

  • 7 LEDs, 70 Watts, 48V

  • Also available with warm white and blue LEDs.1

  • Continuous light

  • Environmental protection: as IP20, fan inside

  • Bottom 1/4-inch standard thread for photographic accessories and mount

  • Standard lenses: 22° FWHM

  • Optional lenses: 27°, 41° FWHM

  • Connect up to 8 units to a single power supply using the GX8 controller

  • Basic power supply with 5 m cable included. Uses standard Ethernet CAT6 S/FTP cable 1:1


With the optional MultiLed GX8 or GX8 Touch controller2 connected, you can access advanced functionality:

  • Down to 200 nanoseconds strobe length at full output power

  • Pulse delay: 220 ns

  • Pulse rise time: 100 ns

  • Pulse fall time: 350 ns

  • Shortest usable pulse width: 200 ns

  • Adjustable intensity for each channel: 0% to 100%

  • Temperature and status display for each lamp head

  • All communications and power supply come from the GX8 through 1 MultiLED GEN4 System X cable

1Alternative colours and outputs:

Colour Wavelength Output
95 CRI White Warm white 3,850 Flux (lm)
Blue 440 - 460 nm 27,000 Flux (mW)

2 Power and control up to eight MX from one GX8 controller.

MultiLED Lamp Head Index: LX - MX- QX - QX Mini - LT - PT - ZX - L180-XF - L48-XF - CG8 - R100/R200 - G-S8

For further information please contact a member of the team at Photo-Sonics International Ltd.
