MultiLED MX

MULTILED MX

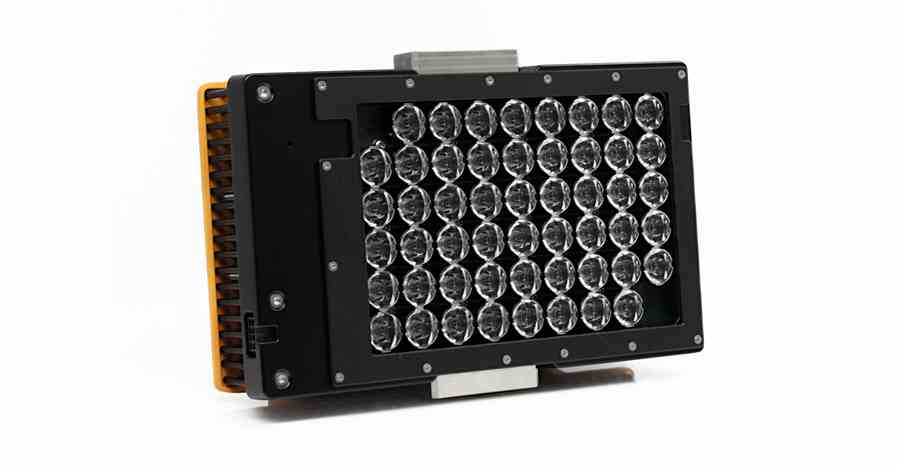

The MultiLED MX is a standalone 60,000 lumen lamp head for continuous operation or access additional functionality with a GX8 or GX8 Touch controller.

• Preinstalled lens (horizontal x vertical): 12°x12°

• Additional lenses (horizontal x vertical): 25°x25° - 40°x40° - 60°x60° - 30°x13° - 60°x12°

• 50,000 Lumen White

• Also available with blue, green, red, and NiR LEDs.¹

• Standard desktop power supply with 7 m cable included

• Continuous operation

• Bottom and top 3/8-inch standard thread for photographic accessories and mount

• IP20, outdoor housing also available

With the optional MultiLed GX8 or GX8 Touch controller² connected, you can access advanced functionality:

• Down to 200 nanoseconds strobe length at full output power

• Pulse delay: 290 ns (level mode); 700 ns +/- 50 ns (edge mode)

• Pulse rise time: 60 ns (white); 25 ns (colour)

• Pulse fall time: 160 ns (white); 15 ns (colour)

• Shortest usable pulse width: 170 ns (white); 100 ns (colour)

• Strobe on pulse duration or flank selectable

• Adjustable intensity for each channel: 0% to 100%

• Temperature and status display for each lamp head

• All communications and power supply come from the GX8 through 1 MultiLED GEN4 System X cable

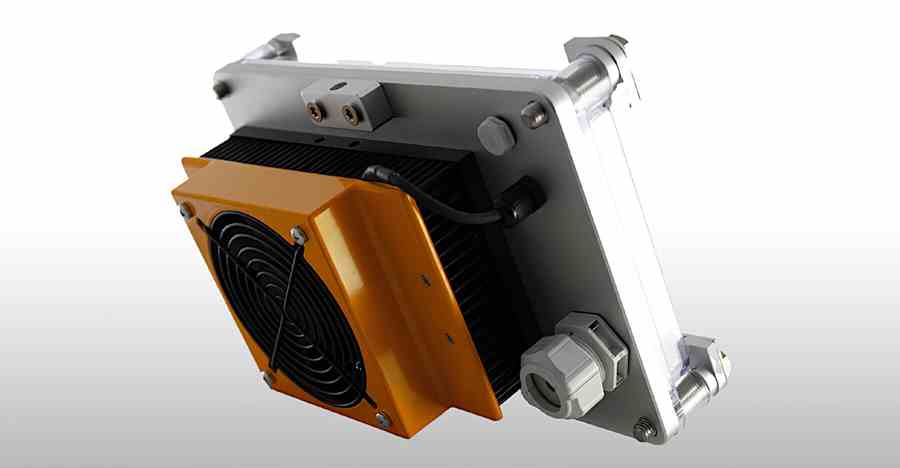

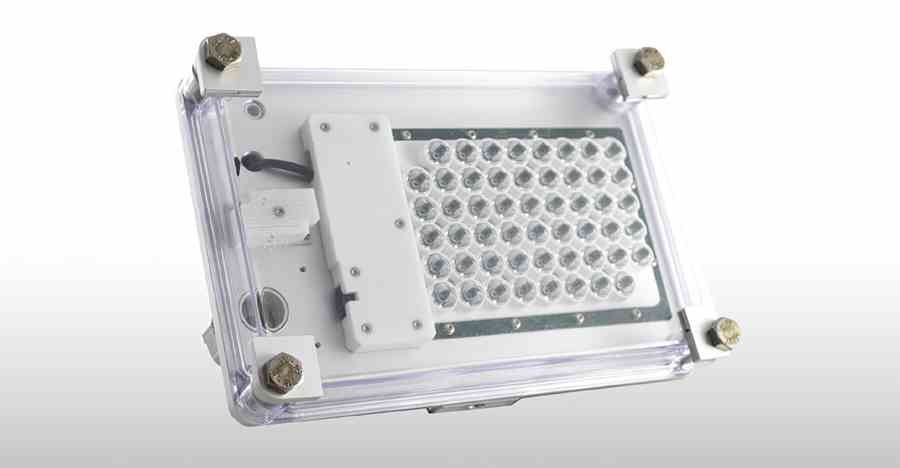

Also available: MX (Outdoor housing)

¹Alternative colours and outputs:

Colour	Wavelength	Output
95 CRI White	Warm white	30,000 Flux (lm)
Blue	440 - 460 nm	180,000 Flux (mW)
Green	520 - 540 nm	42,000 Flux (mW)
Photo Red	640 - 670 nm	131,000 Flux (mW)
NiR	~810 nm	109,000 Flux (mW)
NiR	~850 nm	100,000 Flux (mW)
NiR	~940 nm	108,000 Flux (mW)

Timing with GX8 / GX8 Touch:

	MX White	MX Colour
Delay (level mode)	290 ns	290 ns
Delay (edge mode)	700 ns ±50 ns	700 ns ±50 ns
Rise time	60 ns	25 ns
Fall time	160 ns	15 ns
Shortest usable	170 ns	100 ns

² Supply power directly from GX8 up to two MX heads, control up to eight MX from one GX8 controller (with power injectors)
