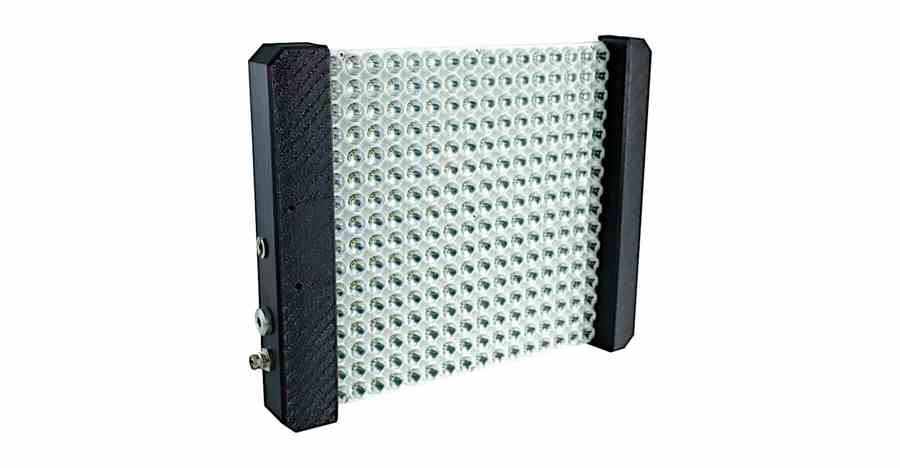

MultiLED L48-XF

MultiLED L48-XF - Professional LED lighting for High Speed Photography

MULTILED L48-XF

The MultiLED L48-XF is a 420,000 lumen lamp head for pulsed operation at low duty cycle only. With 8,5 kW output, e.g. at 8 kHz and 1 μs exposure time only 70 W are used.

  • Power consumption limited to 70 W.

  • Flat design (16 mm).

  • Colour LED options available

  • Very homogenous illumination.

  • 15°, 30°, 50°, 70° or 120° FWHM lenses available.

  • Pulsed by TTL pulse duration.

  • Power supply 60 W with 5 m cable with 2 x 4 Pin M8 connector included.


Options:

  • Longer cables or other cable types on request

  • LiPo Battery pack on request.

  • IP67 housing optional.

  • High-G housing optional (100G).



Available colours and outputs:

Colour Wavelength Output in overdrive
Cool White   420,000 lm
Royal Blue 450 - 460 nm 1,032,000 Flux(mW)
Blue 465 - 485 nm 78,000 lm
Green 520 - 535 nm 180,000 lm
Amber 560 - 650 nm 128,000 lm
Red - Orange 610 - 620 nm 157,000 lm
Red 620 - 630 nm 126,000 lm
Photo Red 650 - 670 nm 744,000 Flux(mW)

MultiLED Lamp Head Index: LX - MX- QX - QX Mini - LT - PT - ZX - L180-XF - L48-XF - CG8 - R100/R200 - G-S8
