MultiLED L180-XF

MULTILED L180-XF

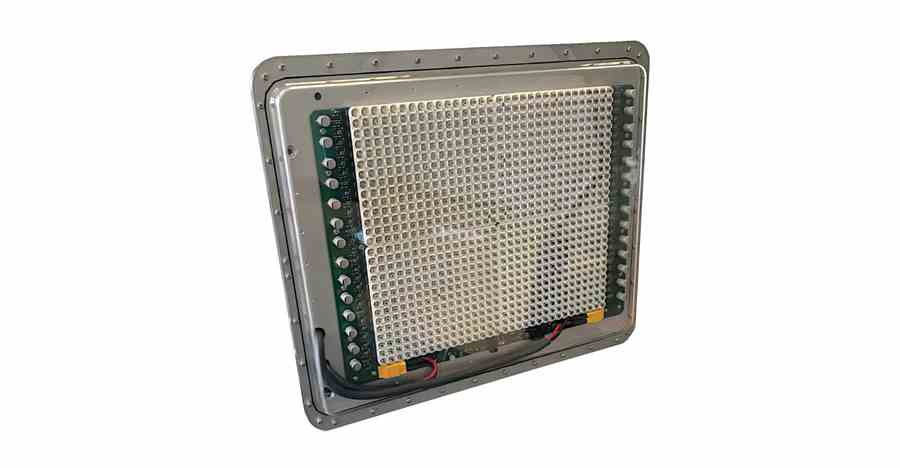

The MultiLED L180-XF is a 1,800,000 lumen LED panel for pulsed operation at low duty cycle only. With 30 kW output, e.g. at 8 kHz and 1 µs exposure time only 240 W are used.

• Power consumption limit depends on heat dump.

• Flat design (20 mm, version without heat dump).

• White or Colour LED.^†

• Very homogenous illumination.

• 15°, 25°, 45°, 75° or 120° FWHM lenses available. Changeable lenses.

• Pulsed by TTL pulse duration.

• Power supply 100 W with 5 m cable with 4 Pin Molex connector included.

Options:

• Longer cables or other cable types on request.

• IP67 housing optional.

• High-G housing optional (100G).

• High temperature housing optional.

• Vacuum chamber housing optional.



^† Available colours and outputs:

Colour	Wavelength	Output in overdrive
Cool White		1,800,000 lm
Royal Blue	450 - 460 nm	3,660,000 Flux(mW)
Blue	465 - 485 nm	240,000 lm
Green	520 - 535 nm	540,000 lm
Amber	560 - 650 nm	455,000 lm
Red - Orange	610 - 620 nm	615,000 lm
Red	620 - 630 nm	438,000 lm
Photo Red	650 - 670 nm	3,000,000 Flux(mW)
