MultiLED LX

MULTILED LX

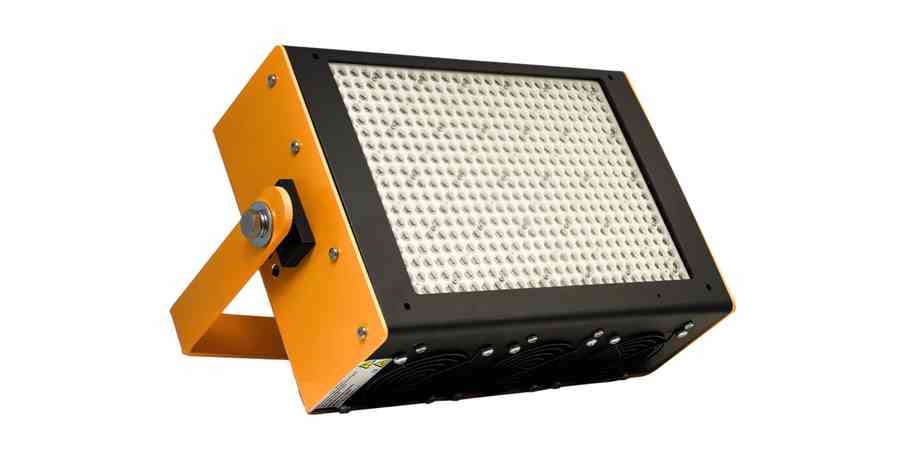

The MultiLED LX is a standalone 200,000 lumen lamp head for pulsed or continuous operation.

• Preinstalled lens (horizontal x vertical): 18°x18°

• Additional lenses (horizontal x vertical): 35°x35° - 45°x45° - 60°x60° - 30°x18° - 60°x18°

• 200.000 lumen continuous or 500.000 lumen with boost version.

• AC or 43 V DC Version available (see datasheet)

• Continuous / pulsed or boost operation

• Yoke, pan, tilt (lock)

• Full control via GX8 / RS 485

• Uses MULTILED GEN4 system cable



With the optional MultiLed GX8 or GX8 Touch controller connected, you can access advanced functionality:



• Down to 200/100 nanoseconds strobe length (white/colour LED)

• Pulse delay: 220 ns

• Pulse rise time: 100 ns

• Pulse fall time: (white/colour LED) 350 ns / 60 ns

• Shortest usable pulse width: (white/colour LED) 200 ns / 100 ns

• Continuous, pulse duration, edge mode with predefined strobe time

• Adjustable intensity for each channel: 1% to 100%

• Temperature and status display for each lamp head

• All communications and trigger come from the GX8 through the system cable

Available colours and outputs:

Colour	Wavelength	Output
Standard	5,700 K	200,000 lm
Blue	440 nm - 460 nm	468,000 Flux (mW)
Cold White	6,500 K	200,000 lm

New GS Vitec „ultra high speed strobe“ technology.
Control up to eight LX from one GX8 controller
Each LX unit has its own power supply
