MultiLED PT

MULTILED PT

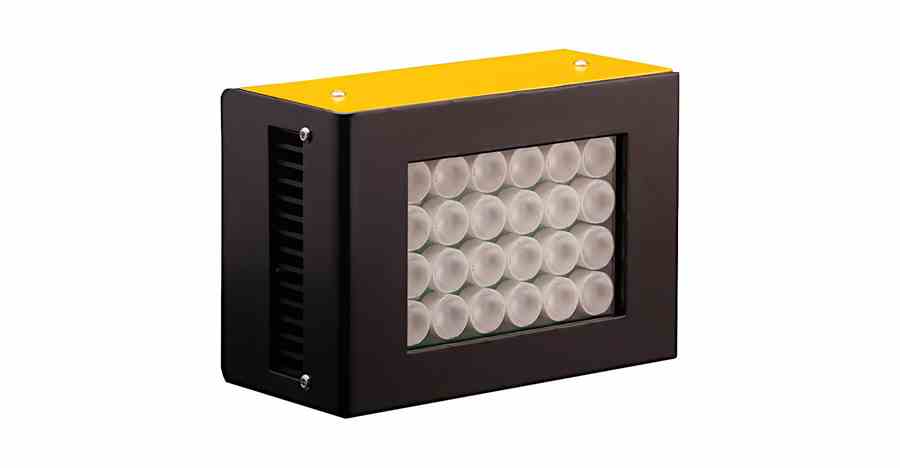

The MultiLED PT is a standalone 7,700 lumen lamp head for continuous or pulsed operation. With 24 high power LED, small size, and low heat radiation, it has a long lifetime (50,000 hours plus).

• 24 High power LEDs, 84 Watt, 24 Volt (7,700 Lumen total)

• Colour LED options available^†

• Robust and highly available XLR jack

• Internal fan

• Environmental protection: as IP20

• Alternative: other IP categories on request

• Weight: approx. 1.1 kg

• bottom 1/4-inch standard thread for photographic accessories and mount.

• Lenses: standard full angle 15°.

• Alternative: 20°, 30°, 50°, 60°, 180°. Can also be changed after sales on request.

• Dimensions: 160*117*80 mm.

• Basic power supply and 5m XLR cable included.

• Alternative/ Accessory: longer cables or other cable types on request, green, red, blue, white CRI-90 LEDs on request, IP class on request.



^† Available colours and outputs:

Colour	Wavelength	Output
Blue	475 nm	2,100 lm
Green	530 nm	6,000 lm
Red	625 nm	3,700 lm
