MultiLED QX

MULTILED QX

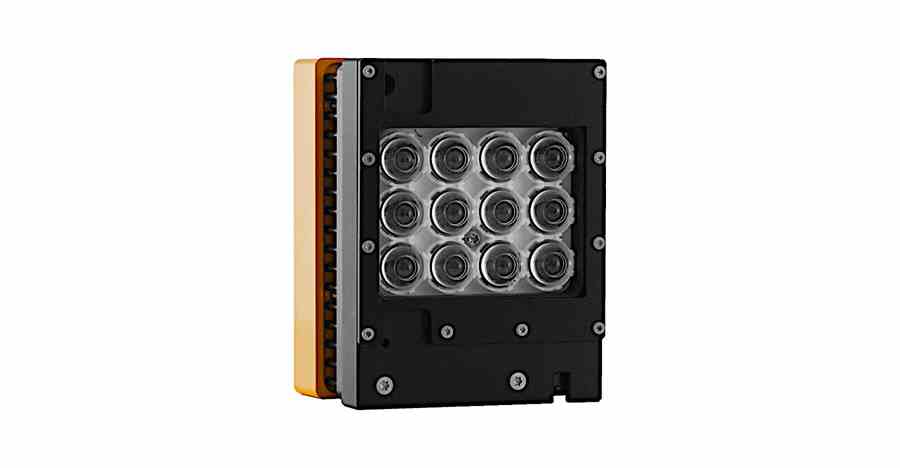

The MultiLED QX is a standalone 12,000 lumen lamp head for continuous operation. This GEN4 lamp replaces the MultiLED QT.

• Preinstalled lens (horizontal x vertical): 12°x12°

• Additional lenses (horizontal x vertical): 25°x25° - 40°x40° - 60°x60° - 30°x13° - 60°x12°

• 12000 Lumen

• Standard desktop power supply with 5 m cable included

• Also available with blue, green, red, and NiR LEDs.¹

• 150W 48V

• Continuous operation

• Bottom 1/4-inch standard thread for photographic accessories and mount

• Status LED

• Uses MULTILED GEN4 System cable

With the optional MultiLed GX8 or GX8 Touch controller² connected, you can access advanced functionality:

• Down to 170 nanoseconds strobe length at full output power

• Pulse delay: 290 ns

• Pulse rise time: 60 ns

• Pulse fall time: 160 ns

• Shortest usable pulse width: 170 ns

• Adjustable intensity for each channel: 0% to 100%

• Temperature and status display for each lamp head

• All communications and power supply come from the GX8 through 1 MultiLED GEN4 System X cable

¹Alternative colours and outputs:

Colour	Wavelength	Output
95 CRI White	Warm white	6,600 Flux (lm)
Blue	440 - 460 nm	46,200 Flux (mW)
Green	520 - 540 nm	9,300 Flux (mW)
Photo Red	640 - 670 nm	30,200 Flux (mW)
NiR	~810 nm	25,100 Flux (mW)
NiR	~850 nm	22,500 Flux (mW)
NiR	~940 nm	24,800 Flux (mW)

² Power and control up to eight MX from one GX8 controller.

MultiLED Lamp Head Index: LX - MX- QX - QX Mini - LT - PT - ZX - L180-XF - L48-XF - CG8 - R100/R200 - G-S8
