MultiLED R100/R200

MULTILED R100/R200

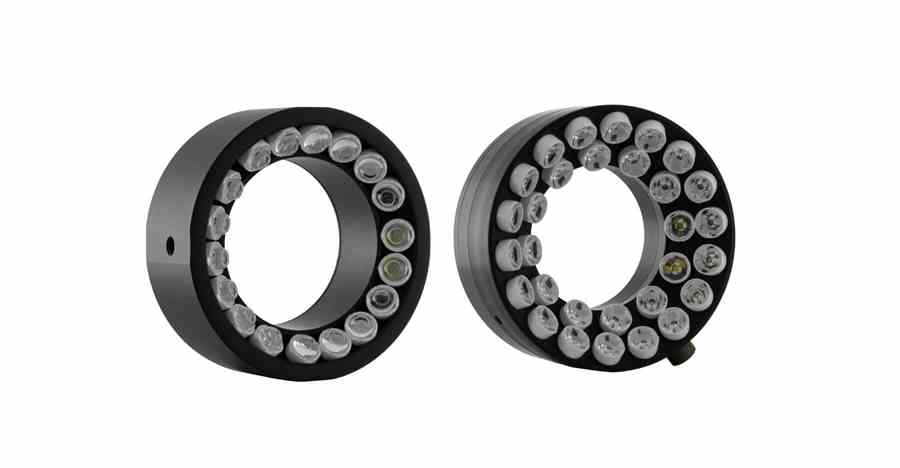

The MultiLED R100 and R200 are small ring light LED for Macro photography.

• Several million Lux in the focus point. Depending on camera sensitivity, up to aperture 22 at 1 microsecond exposure can be achieved.

• Colour LED option available for R100^†

• LED power is focused 50 mm from the front of the unit to a spot of 40*40mm. Other working distances on request.

• Inner diameter 78 mm, outer diameter 140 mm, height 70 mm incl. connectors.

• 2 * standard 1/4“ camera threads on the side for mounting (90° to each other).

• Passively cooled , 10 % duty cycle continuously or up to 2 minute operation at 100% power.

• Continuous operation with additional cooling module.

• BNC, TTL, pulse width controlled up to 30 kHz

• Lenses: standard full angle 15°.

• Alternative lenses: 20°, 30°, 50°, 60°, 180°.



^† Available colours and outputs:

Colour	Wavelength	Output
80 CRI White	Warm white	7,500 lm
Royal Blue	455 nm	25,200 Radiant Flux mw
Blue	475 nm	25,200 Radiant Flux mw
Green	530 nm	5,875 lm
Amber	590 nm	2,800 lm
Red Orange	615 nm	3,550 lm
Red	625 nm	3,550 lm
Photo Red	660 nm	20,160 Radiant Flux mw
Far Red	730 nm	16,375 Radiant Flux mw
