MultiLED ZX

MULTILED L180-XF

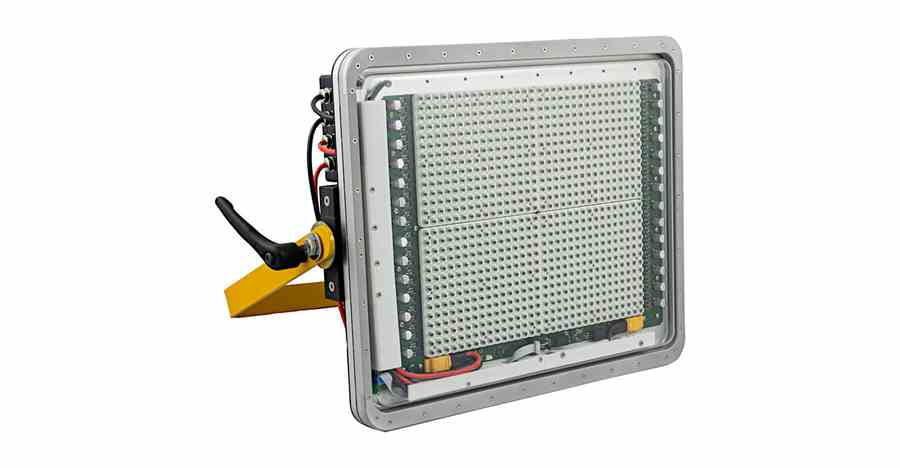

The MultiLED ZX is a 400,000 lumen lamp. Depending on housing type continuous operation can be achieved.

• White or colour LED.^†

• Very homogenous illumination.

• Preinstalled lens (horizontal x vertical): 12°x12°.

• Additional lenses (horizontal x vertical): 25°x25° - 40°x40° - 60°x60° - 30°x13° - 60°x12°.

• Optional: pulsed by TTL pulse duration to save power consumption and reduce heat generation.

• Power supply 4.000 W or 5.000 W with 5 m cable included.

Options:

• Longer cables or other cable types on request.

• IP67 housing optional.

• High-G Version with heat dump optional.



^† Available colours and outputs:

Colour	Wavelength	Output in overdrive
Cool White		400,000 lm
Blue	450 nm	1,600,000 Flux(mW)
Green	530 nm	330,000 Flux(mW)
Red	625 nm	550,000 Flux(mW)
Photo Red	660 nm	1,100,000 Flux(mW)
Far Red	730 nm	550,000 Flux(mW)

MultiLED Lamp Head Index: MX - QX - QX Mini - CT - IT - LT - MT - PT - L5 - L7-XF - L48-XF - L180-XF - ZX - G9 - R100/R200 - G-S8
